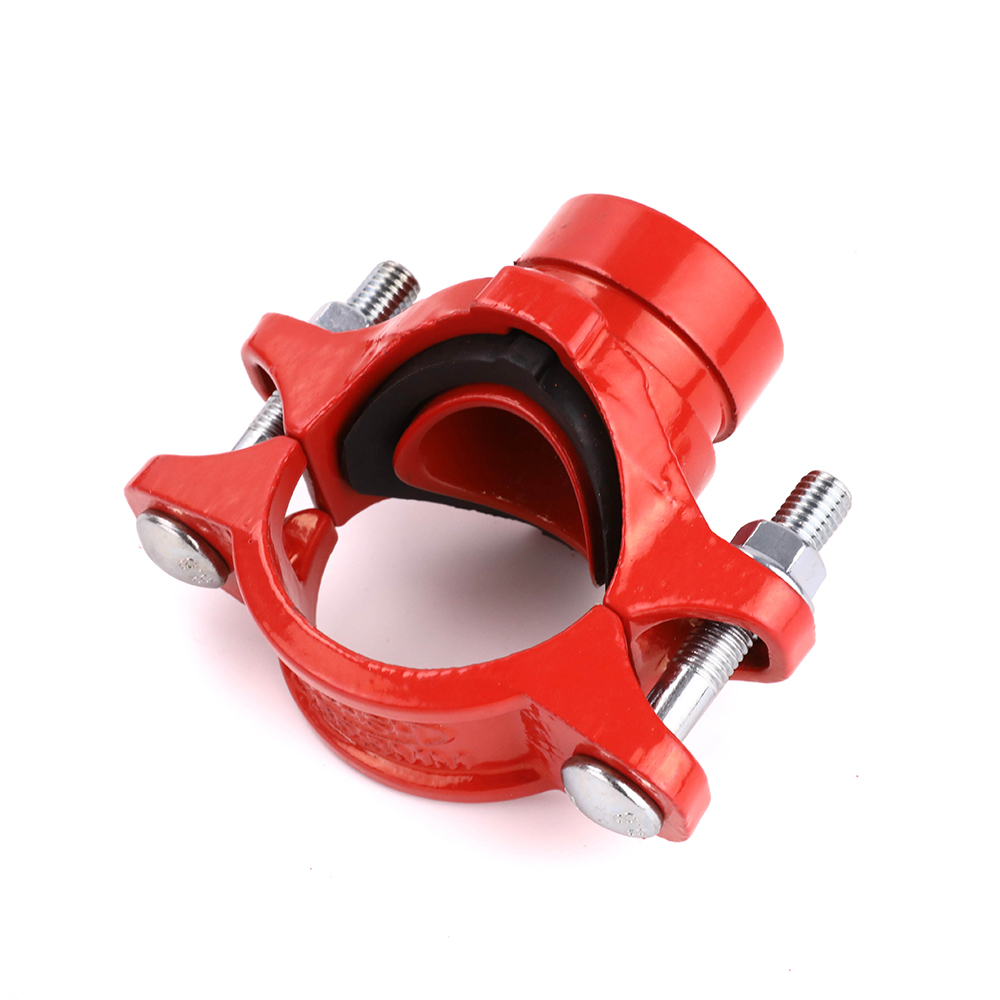

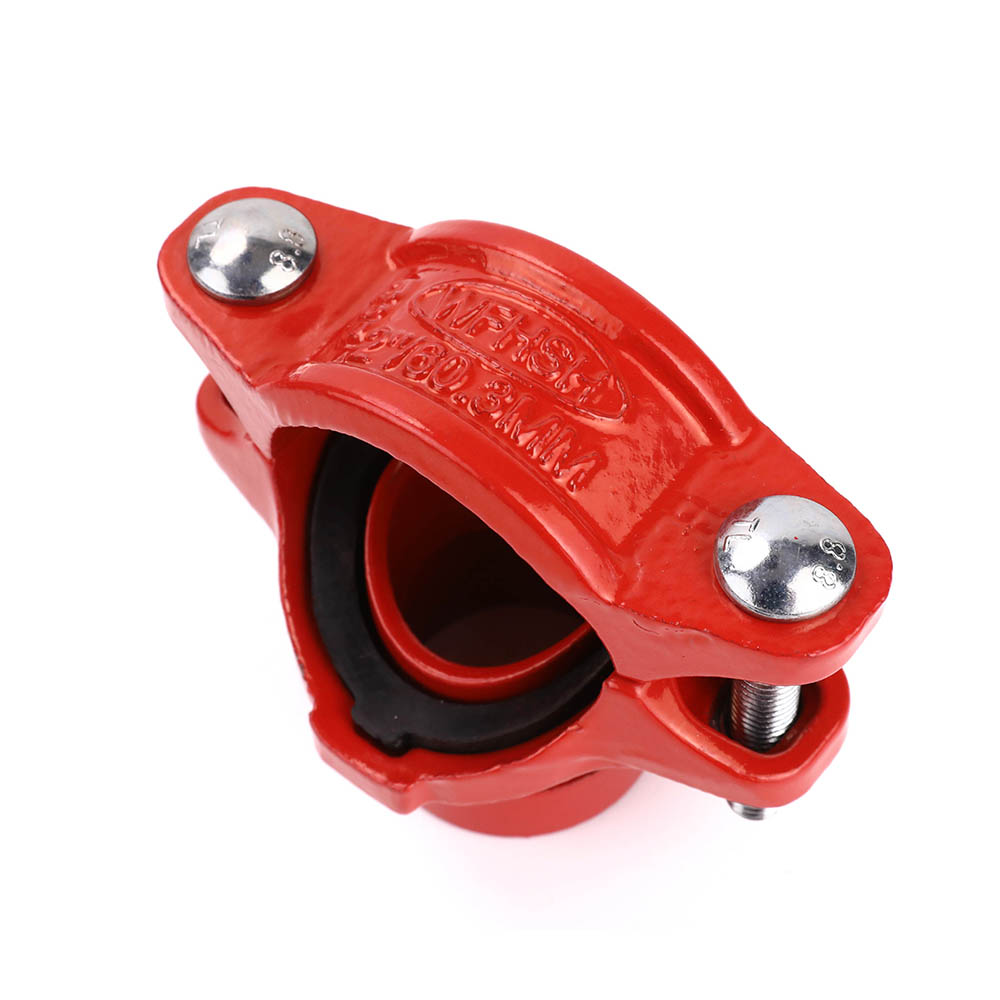

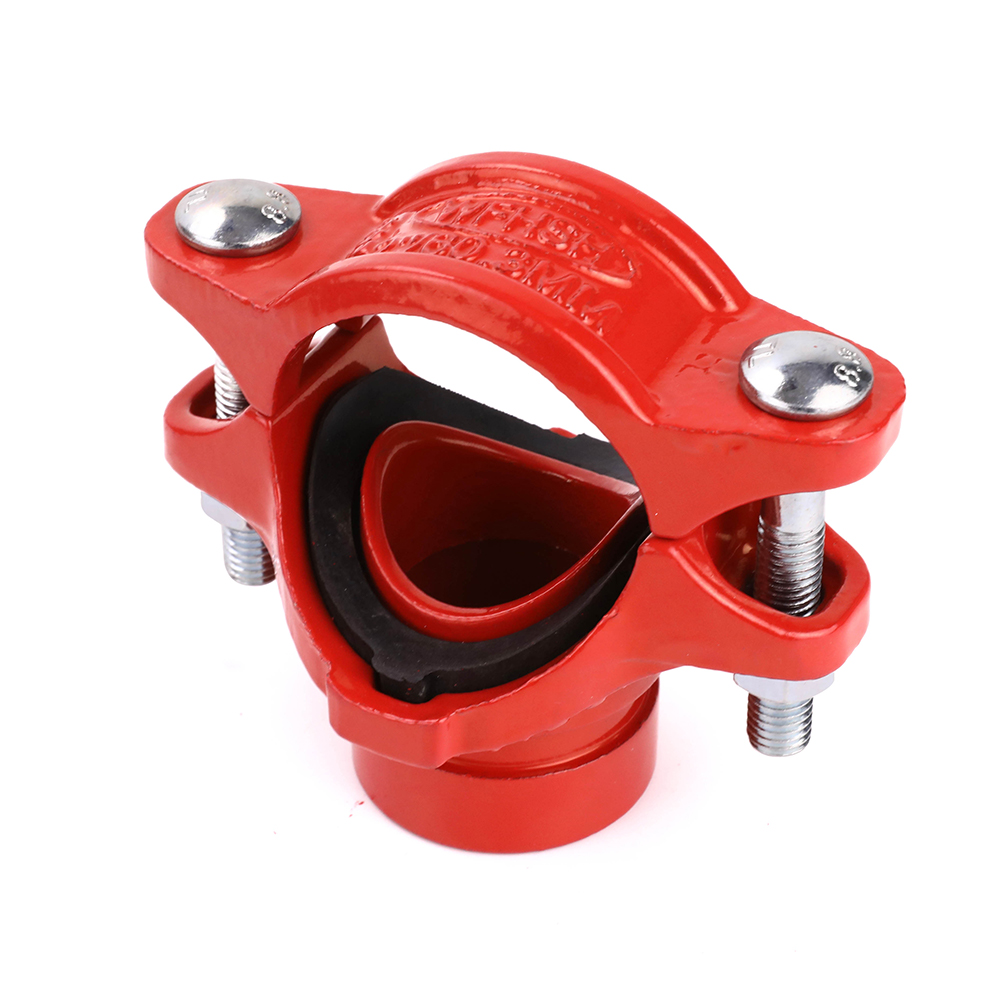

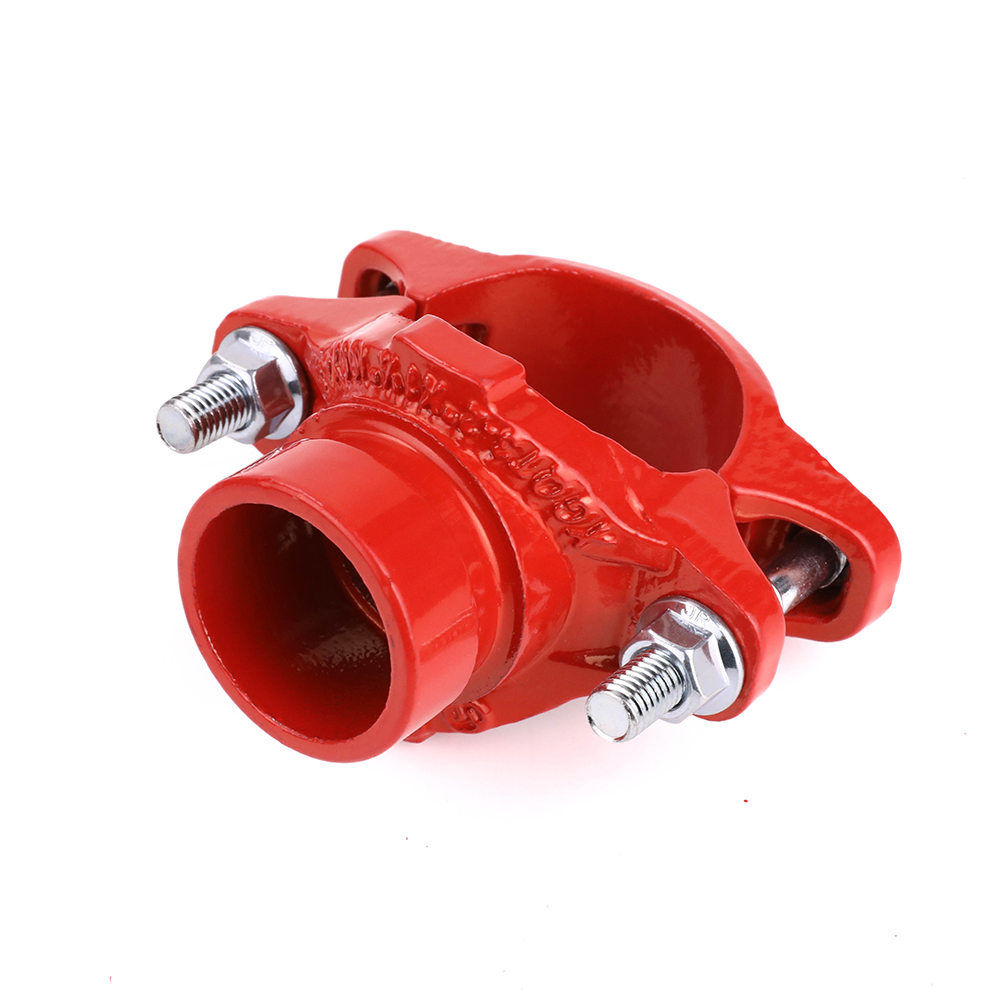

Grooved Mechanical Tee
Grooved Mechanical Tee Grooved Mechanical Tee Grooved Mechanical Tee Grooved Mechanical Tee Grooved Mechanical Tee Grooved Mechanical Tee

Grooved Mechanical Tee

Material: Ductile iron such as ASTM A536 GRADE 65-45-12, QT450-10
Size Available: 1" - 8"
Surface Treatment: hot- dip galvanized, Epoxy coated
Available Color: Red, Orange, Blue, Gray, Sliver(OEM Color supported)

Send email to us
Specification
Nominal Size
mm/in
Pipe O.D
mm
Working
Pressure
PSI/Mpa
Hole Dia
mm/in
Dimensions mm
Bolt Size
Certificate
Φ
L
K
H
NO.- Size
mm
50x32/2x11/4
60.3x42.4
300/2.07
51/2.00
75
116
68
75
M10x55
FM UL
50x40/2x11/2
60.3x48.3
300/2.07
51/2.00
75
116
68
75
M10x55
FM UL
65x32/21/2x11/4
73.0x42.4
300/2.07
51/2.00
92
128
76
83
M10x60
FM UL
65x40/21/2x11/2
73.0x48.3
300/2.07
51/2.00
92
128
76
83
M10x60
FM UL
65x32/3ODx11/4
76.1x42.4
300/2.07
51/2.00
96
128
76
83
M10x60
FM UL
65x40/3ODx11/2
76.1x48.3
300/2.07
51/2.00
96
128
76
83
M10x60
FM UL
80x32/3x11/4
88.9x42.4
300/2.07
51/2.00
108
151
83
86
M12x65
FM UL
80x40/3x11/2
88.9x48.3
300/2.07
51/2.00
108
151
83
86
M12x65
FM UL
80x50/3x2
88.9x60.3
300/2.07
64/2.50
108
151
83
101
M12x65
FM UL
100x65/41/4ODx3OD
108.0x76.1
300/2.07
70/2.75
130
180
100
110
M12x70
FM UL
100x80/41/4ODx3
108.0x88.9
300/2.07
89/3.50
130
180
100
124
M12x70
FM UL
100x25/4x1
114.3x33.7
300/2.07
38/1.50
136
183
100
76
M12x75
FM UL
100x32/4x11/4
114.3x42.4
300/2.07
51/2.00
136
183
100
86
M12x75
FM UL
100x40/4x11/2
114.3x48.3
300/2.07
51/2.00
136
183
100
86
M12x75
FM UL
100x50/4x2
114.3x60.3
300/2.07
64/2.50
136
183
100
105
M12x75
FM UL
100x65/4x21/2
114.3x73.0
300/2.07
70/2.75
136
183
100
110
M12x75
FM UL
100x65/4x3OD
114.3x76.1
300/2.07
70/2.75
136
183
100
110
M12x75
FM UL
100x80/4x3
114.3x88.9
300/2.07
89/3.50
136
183
100
124
M12x75
FM UL
125x32/51/2ODx11/4
139.7x42.4
300/2.07
51/2.00
164
219
110
92
M16x80
FM UL
125x40/51/2ODx11/2
139.7x48.3
300/2.07
51/2.00
164
219
110
92
M16x80
FM UL
125x50/51/2ODx2
139.7x60.3
300/2.07
64/2.50
164
219
110
105
M16x80
FM UL
125x65/51/2ODx3OD
139.7x76.1
300/2.07
70/2.75
164
219
110
110
M16x80
FM UL
125x80/51/2ODx3
139.7x88.9
300/2.07
89/3.50
164
219
110
124
M16x80
FM UL
125x32/5x11/4
141.3x42.4
300/2.07
51/2.00
164
219
110
92
M16x80
FM UL
125x40/5x11/2
141.3x48.3
300/2.07
51/2.00
164
219
110
92
M16x80
FM UL
125x50/5x2
141.3x60.3
300/2.07
64/2.50
164
219
110
105
M16x80
FM UL
125x65/5x3OD
141.3x76.1
300/2.07
70/2.75
164
219
110
110
M16x80
FM UL
150x32/61/2ODx1/4
165.1x42.4
300/2.07
51/2.00
190
245
123
 90
M16x90
FM UL
150x40/61/2ODx1/2
165.1x48.3
300/2.07
51/2.00
190
245
123
90
M16x90
FM UL
150x50/61/2ODx2
165.1x60.3
300/2.07
64/2.50
190
245
123
105
M16x90
FM UL
150x65/61/2ODx3OD
165.1x76.1
300/2.07
70/2.75
190
245
123
110
M16x90
FM UL
150x80/61/2ODx3
165.1x88.9
300/2.07
89/3.50
190
245
123
130
M16x90
FM UL
150x100/61/2ODx4
165.1x114.3
300/2.07
114/4.50
190
245
125
159
M16x90
FM UL
150x32/6x11/4
168.3x42.4
300/2.07
51/2.00
192
250
127
90
M16x90
FM UL
150x40/6x1/2
168.3x48.3
300/2.07
51/2.00
192
250
127
90
M16x90
FM UL
150x50/6x2
168.3x60.3
300/2.07
64/2.50
192
250
127
105
M16x90
FM UL
150x65/6x21/2
168.3x73.0
300/2.07
70/2.75
192
250
127
110
M16x90
FM UL
150x65/6x3OD
168.3x76.1
300/2.07
70/2.75
192
250
127
110
M16x90
FM UL
150x80/6x3
168.3x88.9
300/2.07
89/3.50
192
250
127
130
M16x90
FM UL
150x100/6x4
168.3x114.3
300/2.07
114/4.50
192
250
127
159
M16x90
FM UL
200x50/8x2
219.1x60.3
300/2.07
64/2.50
240
302
150
105
M16x100
FM UL
200x65/8x3OD
219.1x76.1
300/2.07
70/2.75
240
302
150
115
M16x100
FM UL
200x80/8x3
219.1x88.9
300/2.07
89/3.50
240
302
150
134
M16x100
FM UL
200x100/8x4
219.1x114.3
300/2.07
114/4.50
240
302
150
167
M16x100
FM UL
Shandong Zhihua Pipe Industry Co., Ltd.

Shandong Zhihua Pipe Industry Co., Ltd.

Zhihua is located in the beautiful international kite capital -- Weifang City is a collection of research and development, production, and sales of fire fittings, fire extinguishers, and other products of high-tech enterprises. The company was founded in 2007, after years of struggle, and enterprise-scale has been rapid development. Professional Grooved Mechanical Tee Suppliers and Manufacturers in China. At present,The company has passed the ISO9001 quality management system IS014001 environmental management system, and OHSAS18001 occupational health and safety certification, all products of the company through the fire voluntary certification, part of the products through the United States FM, UL, SG Sand CE certification.

As Grooved Mechanical Tee Factory, zhihua offer all size Grooved Mechanical Tee custom. In order to improve product quality, increase production capacity and product specifications, the company began to introduce a large number of advanced production equipment in 2010 including ZZ416 automatic molding line 6 medium frequency induction 3T furnace 4 sets, Fadik 180T sand treatment system, Nidic dust removal system and a series of advanced equipment. This equipment not only stabilizes product quality but also improves production efficiency and reduces the labor intensity of workers. In order to ensure the stability of product quality, the introduction of imported spectrometers, advanced furnace carbon and silicon analyzer, metallographic image analyzer, cast iron laboratory analysis equipment, product pressure, tension, wear test equipment, and the establishment of various professional product testing laboratories.

  • 20230303-111835
  • 20230303-111855
  • Certification
  • Certification
  • Certification

Leave Your Message

Send
PRODUCTS CATEGORIES
Grooved Rigid Coupling Grooved Rigid Coupling
Grooved Flexible Coupling Grooved Flexible Coupling
Angle Pad Coupling Angle Pad Coupling
Grooved 90° Elbow Grooved 90° Elbow
Grooved Equal Tee Grooved Equal Tee
Grooved Reducing Tee Grooved Reducing Tee
Threaded Reducing Tee Threaded Reducing Tee
Grooved Mechanical Tee Grooved Mechanical Tee
Threaded Mechanical Tee Threaded Mechanical Tee
U-bolted Theaded Mechanical Tee U-bolted Theaded Mechanical Tee
Grooved Eccentric Reducer Grooved Eccentric Reducer
Grooved Concentric Reducer Grooved Concentric Reducer
Grooved Mechanical Tee Features
Grooved mechanical tee is a type of pipe fitting used in plumbing, fire protection, and HVAC systems. Here are some of its advantages.
Reduced labor costs: Grooved mechanical tees eliminate the need for skilled labor and expensive equipment, which can significantly reduce labor costs. They also require less time to install, which can further reduce costs.
Easy maintenance: Grooved mechanical tees can be easily disassembled for maintenance and repairs, making them a cost-effective option in the long run.
Improved safety: Grooved mechanical tees are designed to provide a secure and reliable connection, reducing the risk of leaks, spills, and other safety hazards. They are also ideal for use in fire protection systems, where reliable and durable connections are critical.
