Grooved 90° Elbow Manufacturer

Home / Products / Grooved Elbow / Grooved 90° Elbow

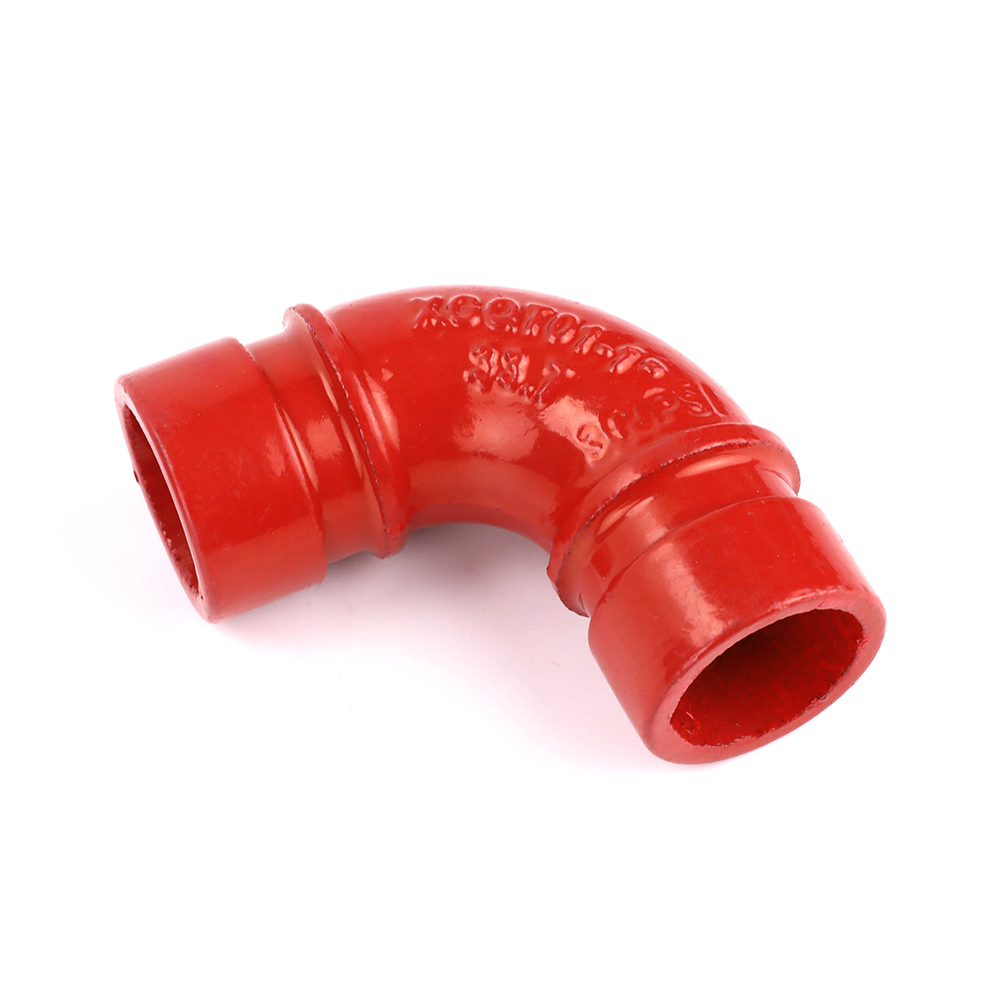

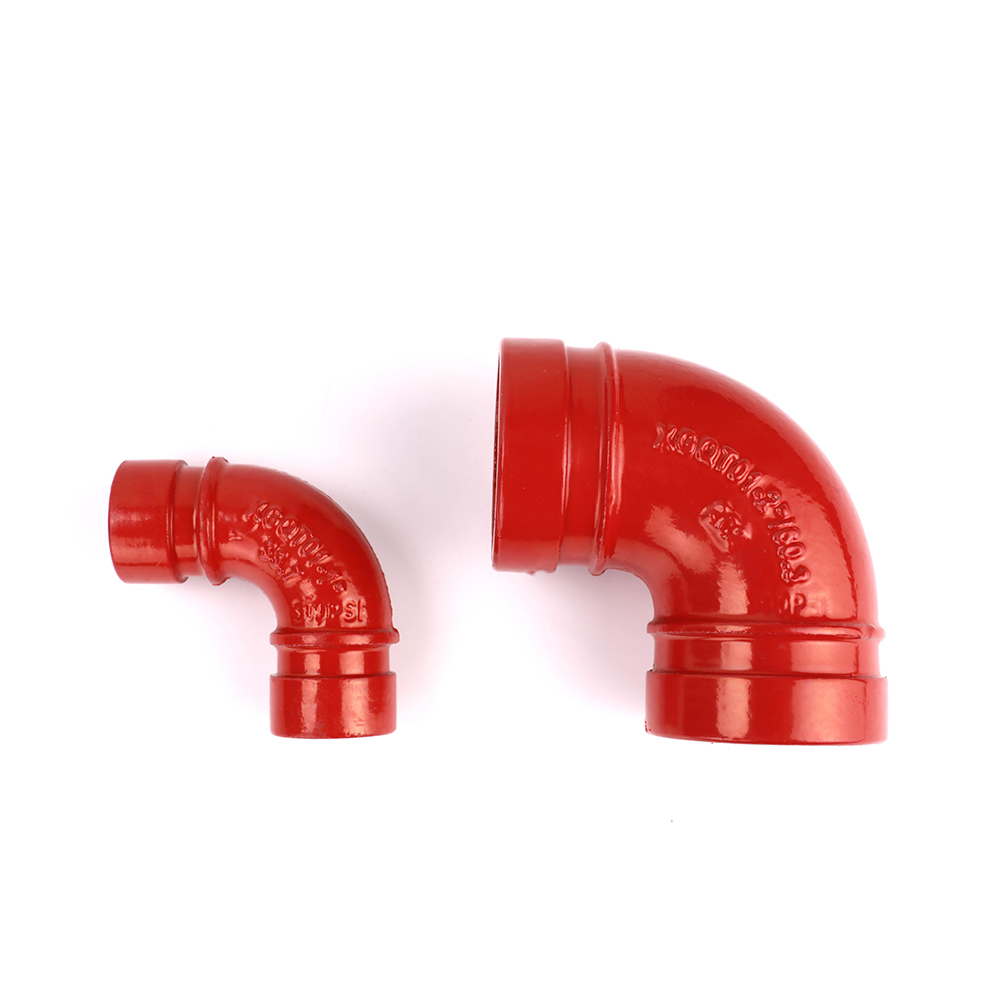

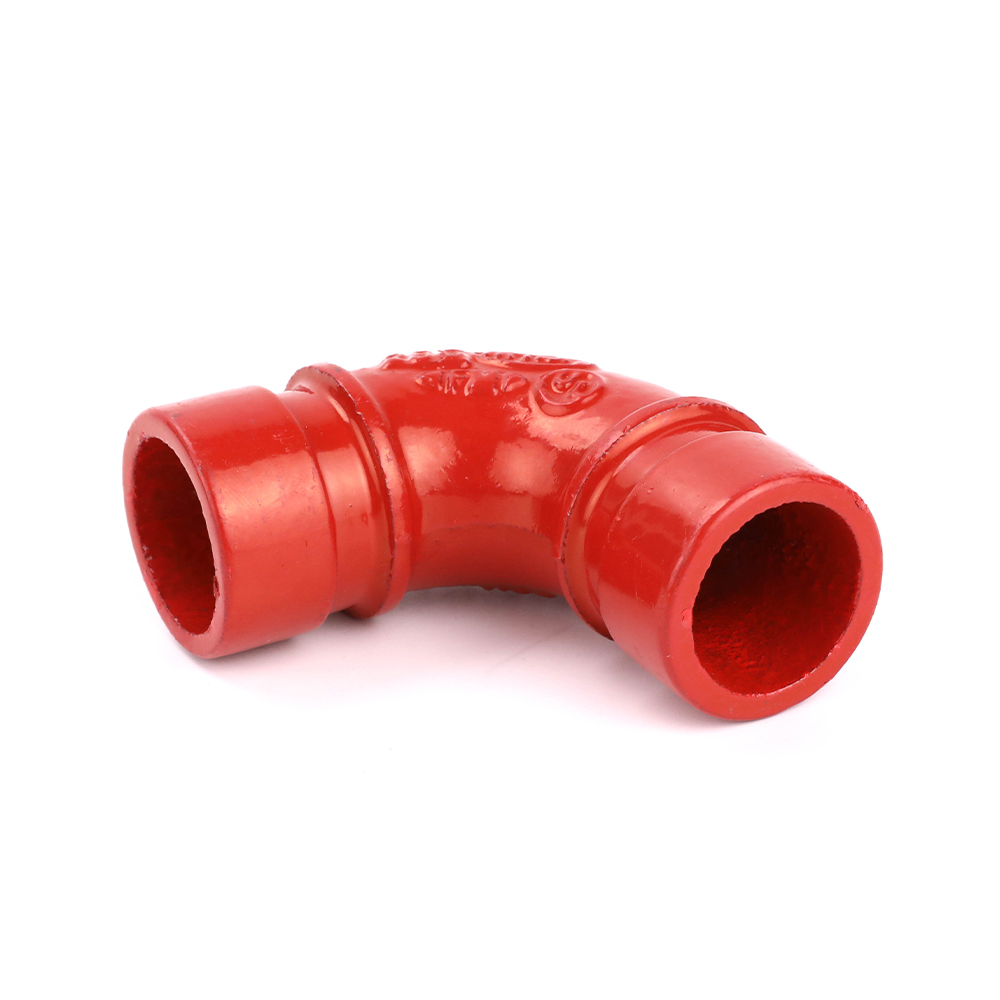

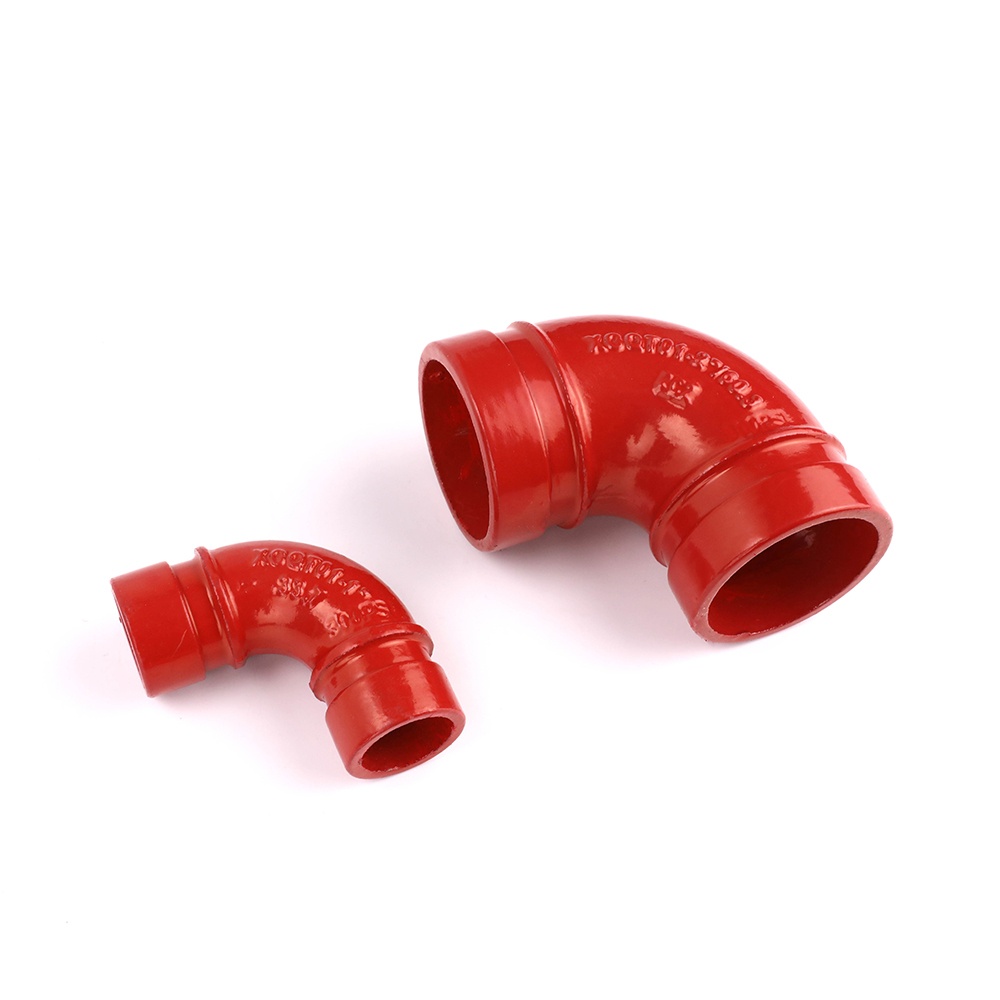

Grooved 90° Elbow
Grooved 90° Elbow Grooved 90° Elbow Grooved 90° Elbow Grooved 90° Elbow Grooved 90° Elbow

Grooved 90° Elbow

Material: Ductile iron such as ASTM A536 GRADE 65-45-12, QT450-10
Size Available: 1" - 24"
Surface Treatment: hot- dip galvanized, Epoxy coated
Available Color: Red, Orange, Blue, Gray, Sliver(OEM Color supported)

Send email to us
Specification
Nominal Size
mm/in
Pipe O.D
mm
Working
Pressure
PSI/Mpa

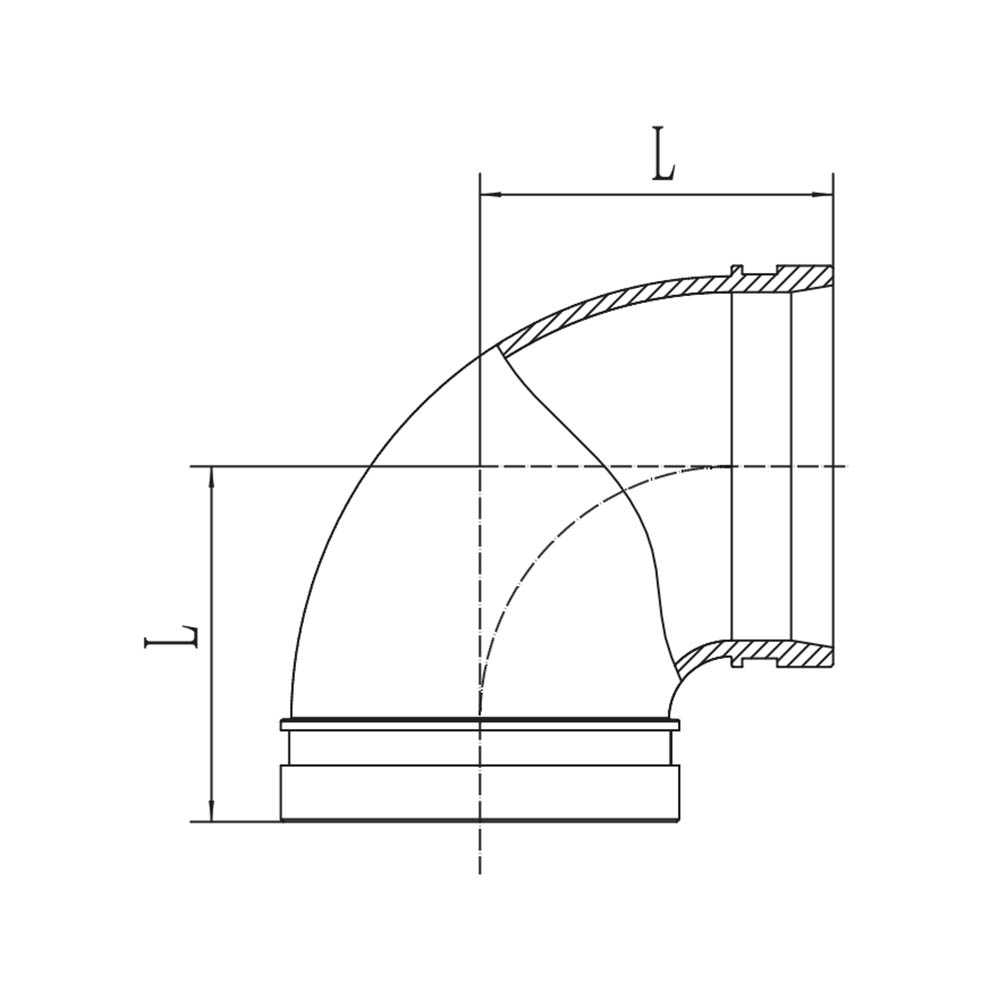

Dimensions L
mm/in
Certificate
25/1
33.7
300/2.07
57/2.24
FM UL
32/11/4
42.4
300/2.07
60/2.36
FM UL
40/11/2
48.3
300/2.07
60/2.36
FM UL
50/2
60.3
300/2.07
70/2.75
FM UL
65/21/2
73
300/2.07
76/3.00
FM UL
65/21/2
76.1
300/2.07
76/3.00
FM UL
80/3
88.9
300/2.07
86/3.39
FM UL
100/4
108
300/2.07
102/4.02
FM UL
100/4
114.3
300/2.07
102/4.02
FM UL
125/5
133
300/2.07
124/4.88
FM UL
125/5
139.7
300/2.07
124/4.88
FM UL
125/5
141.3
300/2.07
124/4.88
——
150/6
159
300/2.07
140/5.50
FM UL
150/6
165.1
300/2.07
140/5.50
FM UL
150/6
168.3
300/2.07
140/5.50
FM UL
200/8
219.1
300/2.07
173/6.81
FM UL
250/10
273
300/2.07
215/8.46
FM UL
300/12
323.9
300/2.07
245/9.65
FM UL
Shandong Zhihua Pipe Industry Co., Ltd.

Shandong Zhihua Pipe Industry Co., Ltd.

Zhihua is located in the beautiful international kite capital -- Weifang City is a collection of research and development, production, and sales of fire fittings, fire extinguishers, and other products of high-tech enterprises. The company was founded in 2007, after years of struggle, and enterprise-scale has been rapid development. Professional Grooved 90° Elbow Suppliers and Manufacturers in China. At present,The company has passed the ISO9001 quality management system IS014001 environmental management system, and OHSAS18001 occupational health and safety certification, all products of the company through the fire voluntary certification, part of the products through the United States FM, UL, SG Sand CE certification.

As Grooved 90° Elbow Factory, zhihua offer all size Grooved 90° Elbow custom. In order to improve product quality, increase production capacity and product specifications, the company began to introduce a large number of advanced production equipment in 2010 including ZZ416 automatic molding line 6 medium frequency induction 3T furnace 4 sets, Fadik 180T sand treatment system, Nidic dust removal system and a series of advanced equipment. This equipment not only stabilizes product quality but also improves production efficiency and reduces the labor intensity of workers. In order to ensure the stability of product quality, the introduction of imported spectrometers, advanced furnace carbon and silicon analyzer, metallographic image analyzer, cast iron laboratory analysis equipment, product pressure, tension, wear test equipment, and the establishment of various professional product testing laboratories.

  • 20230303-111835
  • 20230303-111855
  • Certification
  • Certification
  • Certification

Leave Your Message

Send
PRODUCTS CATEGORIES
Grooved Rigid Coupling Grooved Rigid Coupling
Grooved Flexible Coupling Grooved Flexible Coupling
Angle Pad Coupling Angle Pad Coupling
Grooved 90° Elbow Grooved 90° Elbow
Grooved Equal Tee Grooved Equal Tee
Grooved Reducing Tee Grooved Reducing Tee
Threaded Reducing Tee Threaded Reducing Tee
Grooved Mechanical Tee Grooved Mechanical Tee
Threaded Mechanical Tee Threaded Mechanical Tee
U-bolted Theaded Mechanical Tee U-bolted Theaded Mechanical Tee
Grooved Eccentric Reducer Grooved Eccentric Reducer
Grooved Concentric Reducer Grooved Concentric Reducer
Grooved 90° Elbow Features
Grooved 90°elbow is a type of pipe fitting that is designed to allow for changes in direction in a piping system. Here are some advantages of using grooved 90° elbow:
Cost-effective: Grooved 90° elbows are cost-effective and can be used in a wide range of applications. They are made from durable materials that are resistant to corrosion and wear, which makes them a cost-effective option for long-term use.
Reliable: Grooved 90° elbows are designed to provide a secure and reliable connection between pipes. The grooved design creates a tight seal that helps to prevent leaks and ensures that the piping system operates efficiently.
Versatile: Grooved 90° elbows can be used in a wide range of piping systems, including those that carry water, chemicals, and other types of fluids. They are also suitable for use in a variety of industries, including construction, manufacturing, and plumbing.
