Threaded Reducing Tee
Threaded Reducing Tee Threaded Reducing Tee Threaded Reducing Tee Threaded Reducing Tee Threaded Reducing Tee

Threaded Reducing Tee

Material: Ductile iron such as ASTM A536 GRADE 65-45-12, QT450-10
Size Available: 1" - 24"
Surface Treatment: hot- dip galvanized, Epoxy coated
Available Color: Red, Orange, Blue, Gray, Sliver(OEM Color supported)

Send email to us
Specification
Nominal Size
mm/in		 Pipe O.D
mm		 Working
Pressure
PSI/Mpa		 Dimensions
mm/in		 Certificate

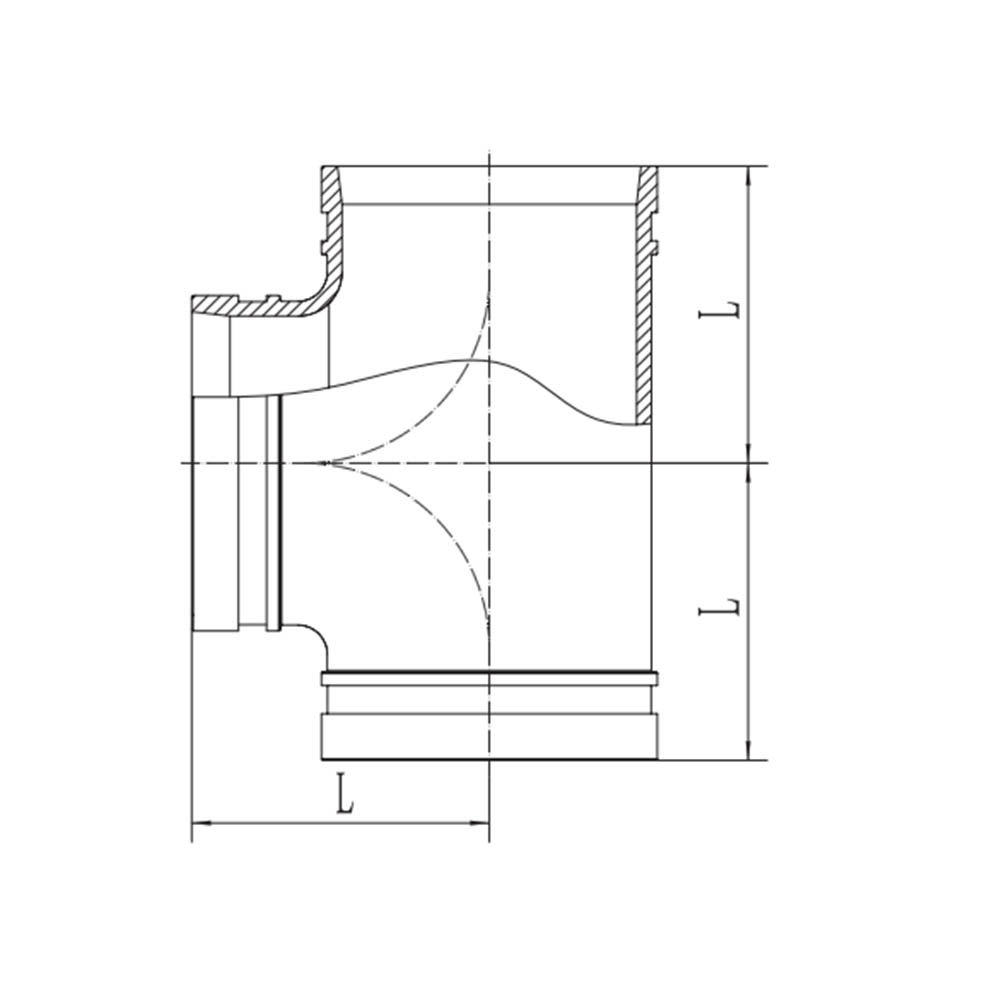

Φ L
50x25/2x1 60.3x33.7 300/2.07 70/2.57 70/2.57 FM UL
50x32/2x11/4 60.3x42.4 300/2.07 70/2.57 70/2.57 FM UL
50x40/2x11/2 60.3x48.3 300/2.07 70/2.57 70/2.57 FM UL
65x32/21/2x11/4 73.0x42.4 300/2.07 76/3.00 76/3.00 FM UL
65x40/21/2x11/2 73.0x48.3 300/2.07 76/3.00 76/3.00 FM UL
65x50/21/2x2 73.0x60.3 300/2.07 76/3.00 76/3.00 FM UL
65x25/3ODx1 76.1x33.7 300/2.07 76/3.00 76/3.00 FM UL
65x40/30Dx11/2 76.1x48.3 300/2.07 76/3.00 76/3.00 FM UL
65x50/3ODx2 76.1x60.3 300/2.07 76/3.00 76/3.00 FM UL
80x25/3x1 88.9x33.7 300/2.07 86/3.38 86/3.38 FM UL
80x32/3x11/4 88.9x42.4 300/2.07 86/3.38 86/3.38 FM UL
80x40/3x11/2 88.9x48.3 300/2.07 86/3.38 86/3.38 FM UL
80x50/3x2 88.9x60.3 300/2.07 86/3.38 86/3.38 FM UL
80x65/3x3OD 88.9x76.1 300/2.07 86/3.38 86/3.38 FM UL
100x65/41/4ODx3OD 108.0x76.1 300/2.07 102/4.01 102/4.01 FM UL
100x80/41/4ODx3 108.0x88.9 300/2.07 102/4.01 102/4.01 FM UL
100x25/4x1 114.3x33.7 300/2.07 102/4.01 102/4.01 FM UL
100x32/4x11/4 114.3x42.4 300/2.07 102/4.01 102/4.01 FM UL
100x40/4x11/2 114.3x48.3 300/2.07 102/4.01 102/4.01 FM UL
100x50/4x2 114.3x60.3 300/2.07 102/4.01 102/4.01 FM UL
100x65/4x21/2 114.3x73.0 300/2.07 102/4.01 102/4.01 FM UL
100x65/4x3OD 114.3x76.1 300/2.07 102/4.01 102/4.01 FM UL
100x80/4x3 114.3x88.9 300/2.07 102/4.01 102/4.01 FM UL
125x25/51/2ODx1 139.7x33.7 300/2.07 124/4.88 124/4.88 FM UL
125x32/51/2ODx11/4 139.7x42.4 300/2.07 124/4.88 124/4.88 FM UL
125x40/51/2ODx11/2 139.7x48.3 300/2.07 124/4.88 124/4.88 FM UL
125x50/51/2ODx2 139.7x60.3 300/2.07 124/4.88 124/4.88 FM UL
125x65/51/2ODx21/2 139.7x76.1 300/2.07 124/4.88 124/4.88 FM UL
125x80/51/2ODx3 139.7x88.9 300/2.07 124/4.88 124/4.88 FM UL
150x65/61/4ODx3OD 159.0x76.1 300/2.07 140/5.50 140/5.50 FM UL
150x80/61/4ODx3 159.0x88.9 300/2.07 140/5.50 140/5.50 FM UL
150x25/61/2ODx1 165.1x33.7 300/2.07 140/5.50 140/5.50 FM UL
150x32/61/2ODx11/4 165.1x42.4 300/2.07 140/5.50 140/5.50 FM UL
150x40/61/2ODx11/2 165.1x48.3 300/2.07 140/5.50 140/5.50 FM UL
150x50/61/2ODx2 165.1x60.3 300/2.07 140/5.50 140/5.50 FM UL
150x65/61/2ODx3OD 165.1x76.1 300/2.07 140/5.50 140/5.50 FM UL
150x80/61/2ODx3OD 165.1x88.9 300/2.07 140/5.50 140/5.50 FM UL
150x25/6x1 168.3x33.7 300/2.07 140/5.50 140/5.50 FM UL
150x32/6x11/4 168.3x42.4 300/2.07 140/5.50 140/5.50 FM UL
150x50/6x2 168.3x60.3 300/2.07 140/5.50 140/5.50 FM UL
150x65/6x21/2 168.3x73.0 300/2.07 140/5.50 140/5.50 FM UL
150x80/6x3 168.3x88.9 300/2.07 140/5.50 140/5.50 FM UL
200x65/8x3OD 219.1x76.1 300/2.07 175/6.89 175/6.89 FM UL
200x80/8x3 219.1x88.9 300/2.07 175/6.89 175/6.89 FM UL
Shandong Zhihua Pipe Industry Co., Ltd.

Shandong Zhihua Pipe Industry Co., Ltd.

Zhihua is located in the beautiful international kite capital -- Weifang City is a collection of research and development, production, and sales of fire fittings, fire extinguishers, and other products of high-tech enterprises. The company was founded in 2007, after years of struggle, and enterprise-scale has been rapid development. Professional Threaded Reducing Tee Suppliers and Manufacturers in China. At present,The company has passed the ISO9001 quality management system IS014001 environmental management system, and OHSAS18001 occupational health and safety certification, all products of the company through the fire voluntary certification, part of the products through the United States FM, UL, SG Sand CE certification.

As Threaded Reducing Tee Factory, zhihua offer all size Threaded Reducing Tee custom. In order to improve product quality, increase production capacity and product specifications, the company began to introduce a large number of advanced production equipment in 2010 including ZZ416 automatic molding line 6 medium frequency induction 3T furnace 4 sets, Fadik 180T sand treatment system, Nidic dust removal system and a series of advanced equipment. This equipment not only stabilizes product quality but also improves production efficiency and reduces the labor intensity of workers. In order to ensure the stability of product quality, the introduction of imported spectrometers, advanced furnace carbon and silicon analyzer, metallographic image analyzer, cast iron laboratory analysis equipment, product pressure, tension, wear test equipment, and the establishment of various professional product testing laboratories.

  • 20230303-111835
  • 20230303-111855
  • Certification
  • Certification
  • Certification

Leave Your Message

Send
PRODUCTS CATEGORIES
Grooved Rigid Coupling Grooved Rigid Coupling
Grooved Flexible Coupling Grooved Flexible Coupling
Angle Pad Coupling Angle Pad Coupling
Grooved 90° Elbow Grooved 90° Elbow
Grooved Equal Tee Grooved Equal Tee
Grooved Reducing Tee Grooved Reducing Tee
Threaded Reducing Tee Threaded Reducing Tee
Grooved Mechanical Tee Grooved Mechanical Tee
Threaded Mechanical Tee Threaded Mechanical Tee
U-bolted Theaded Mechanical Tee U-bolted Theaded Mechanical Tee
Grooved Eccentric Reducer Grooved Eccentric Reducer
Grooved Concentric Reducer Grooved Concentric Reducer
Threaded Reducing Tee Features
Threaded reducing tee connects three pipes of different sizes. It is called a reducing tee because it has a smaller branch than the other two branches. The threaded reducing tee has female threaded connections on all three ends, which allows for easy installation by screwing it onto the corresponding male threaded pipes. This type of tee is commonly used in applications where the flow needs to be diverted or combined in different directions, such as in water distribution systems or in gas pipelines. Threaded-reducing tees come in different sizes and materials to accommodate various pipe sizes and fluids. They are typically made of materials such as stainless steel, brass, or PVC, depending on the application and the type of fluid being transported. Proper selection of the appropriate size and material of the threaded reducing tee is crucial to ensure the integrity and longevity of the piping system.
