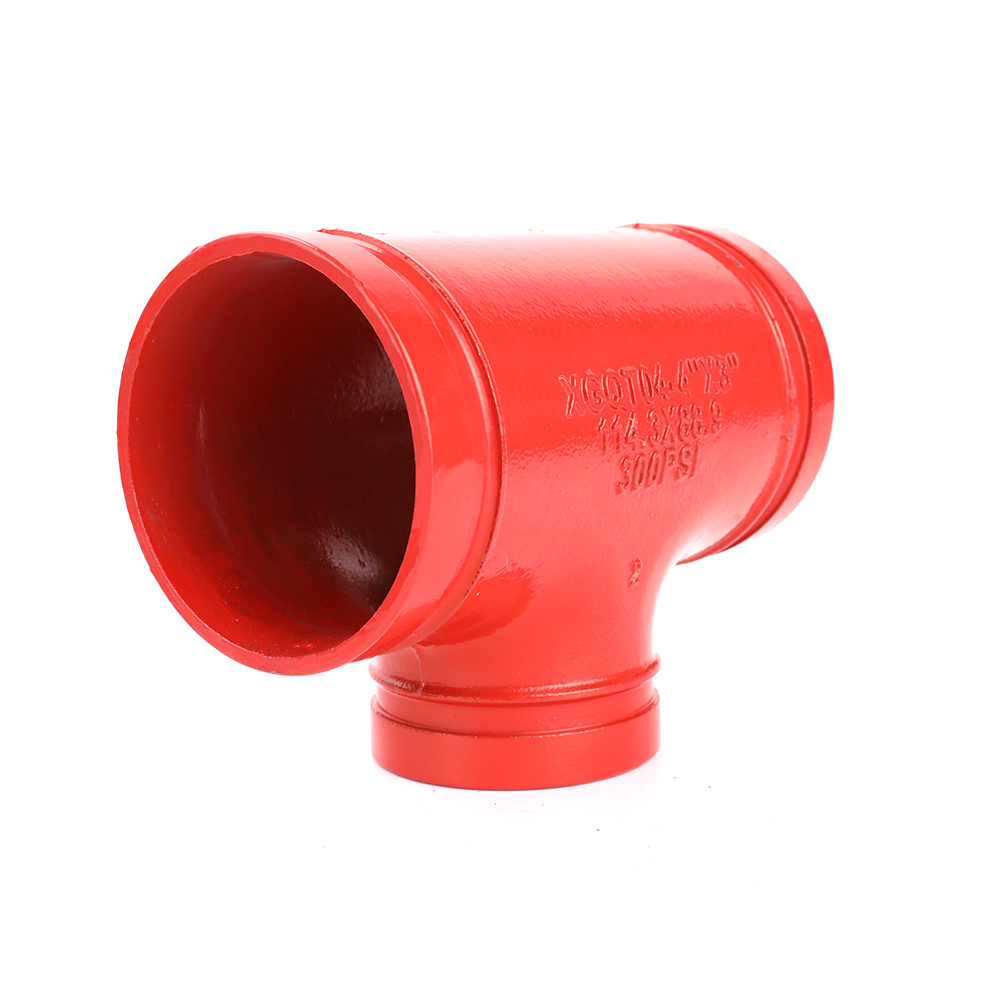

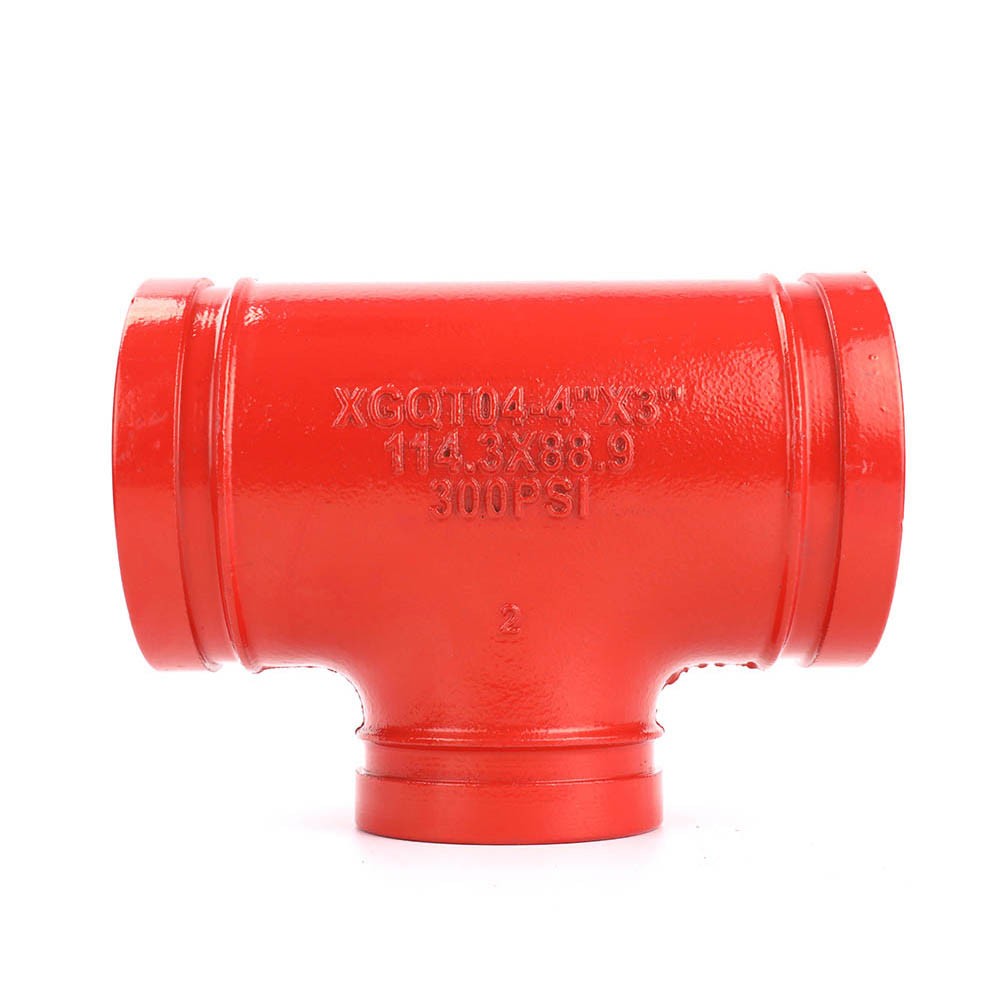

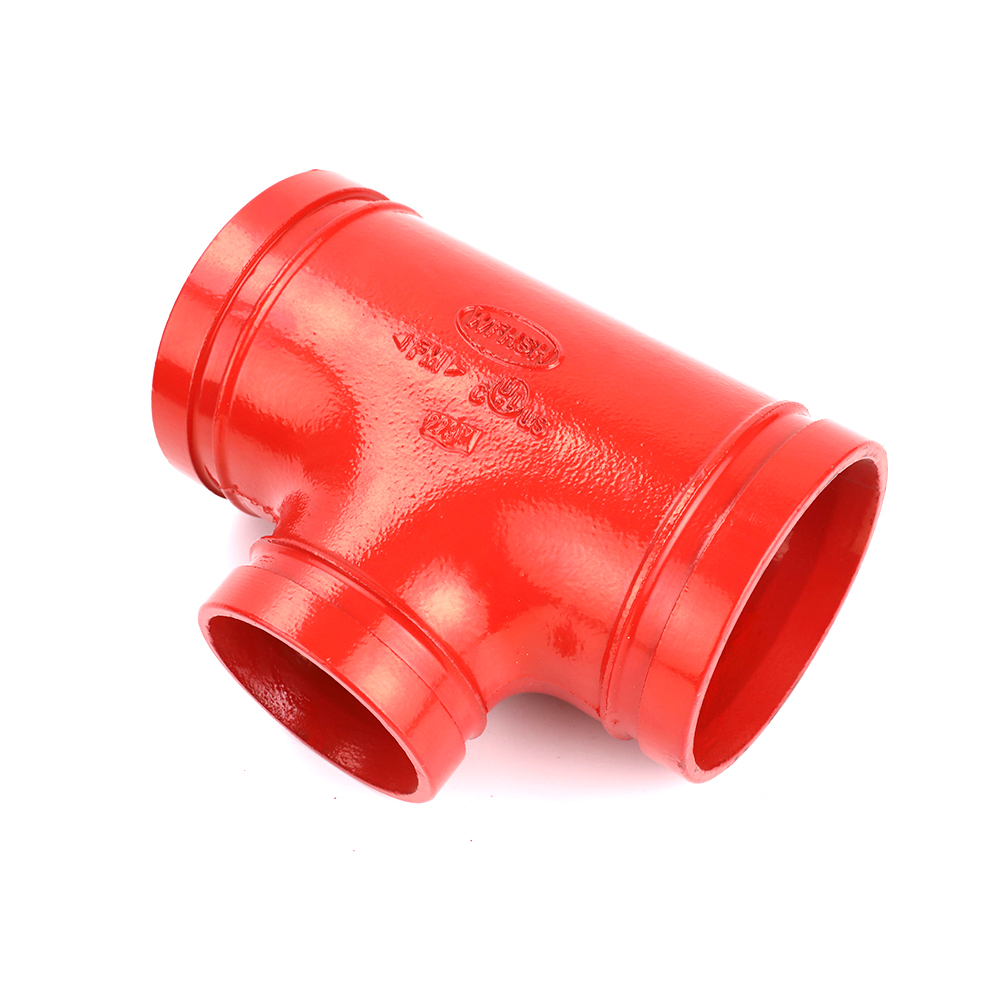

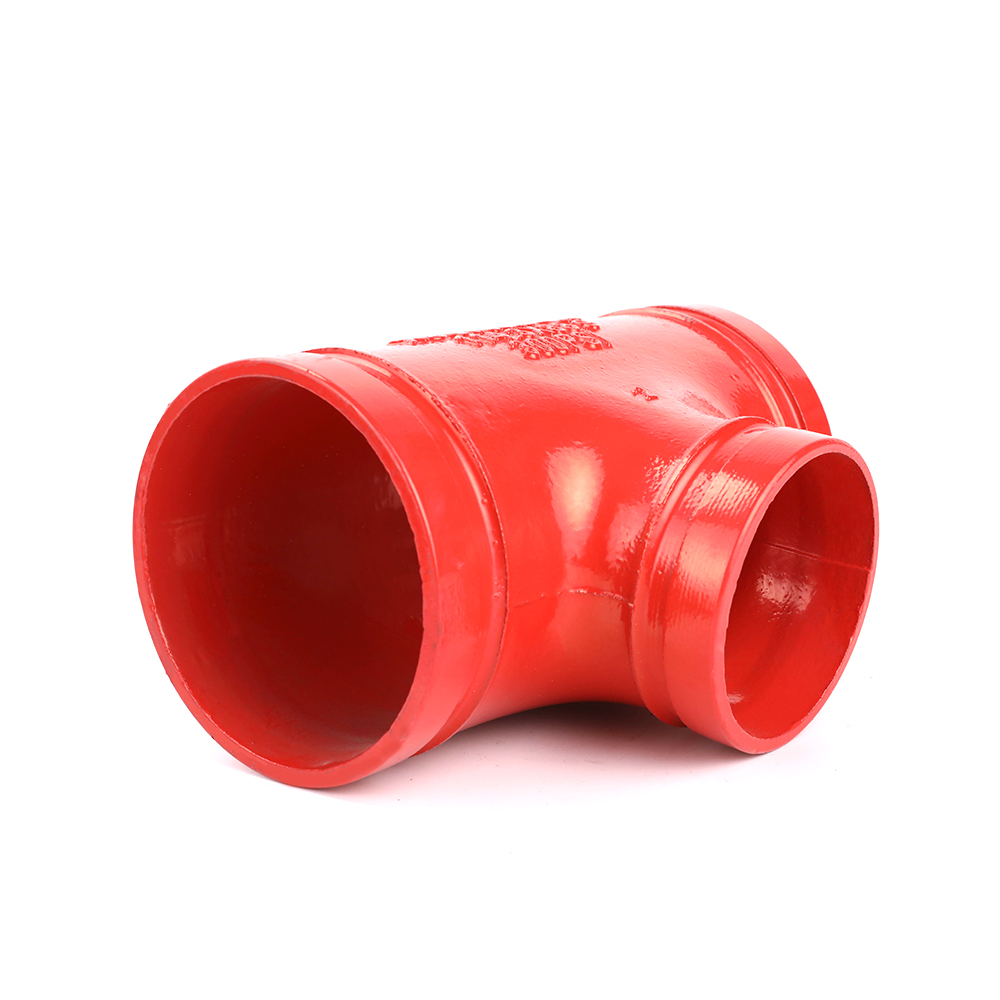

Grooved Reducing Tee
Grooved Reducing Tee Grooved Reducing Tee Grooved Reducing Tee Grooved Reducing Tee Grooved Reducing Tee

Grooved Reducing Tee

Material: Ductile iron such as ASTM A536 GRADE 65-45-12, QT450-10
Size Available: 1" - 24"
Surface Treatment: hot- dip galvanized, Epoxy coated
Available Color: Red, Orange, Blue, Gray, Sliver(OEM Color supported)

Send email to us
Specification
Nominal Size
mm/in		 Pipe O.D
mm		 Working
Pressure
PSI/Mpa		 Dimensions
mm/in		 Certificate
Φ L
50x25/2x1 60.3x33.7 300/2.07 70/2.57 70/2.57 FM UL
50x32/2x11/4 60.3x42.4 300/2.07 70/2.57 70/2.57 FM UL
50x40/2x11/2 60.3x48.3 300/2.07 70/2.57 70/2.57 FM UL
65x32/21/2x11/4 73.0x42.4 300/2.07 76/3.00 76/3.00 FM UL
65x40/21/2x11/2 73.0x48.3 300/2.07 76/3.00 76/3.00 FM UL
65x50/21/2x2 73.0x60.3 300/2.07 76/3.00 76/3.00 FM UL
65x40/3ODx11/2 76.1x48.3 300/2.07 76/3.00 76/3.00 FM UL
65x50/3ODx2 76.1x60.3 300/2.07 76/3.00 76/3.00 FM UL
80x40/3x11/2 88.9x48.3 300/2.07 86/3.38 86/3.38 FM UL
80x50/3x2 88.9x60.3 300/2.07 86/3.38 86/3.38 FM UL
80x65/3x21/2 88.9x73.0 300/2.07 86/3.38 86/3.38 FM UL
80x65/3x3OD 88.9x76.1 300/2.07 86/3.38 86/3.38 FM UL
100x65/41/4ODx3OD 108.0x76.1 300/2.07 102/4.01 102/4.01 FM UL
100x80/41/4ODx3 108.0x88.9 300/2.07 102/4.01 102/4.01 FM UL
100x50/4x2 114.3x60.3 300/2.07 102/4.01 102/4.01 FM UL
100x65/4x21/2 114.3x73.0 300/2.07 102/4.01 102/4.01 FM UL
100x65/4x3OD 114.3x76.1 300/2.07 102/4.01 102/4.01 FM UL
100x80/4x3 114.3x88.9 300/2.07 102/4.01 102/4.01 FM UL
125x50/51/2ODx2 139.7x60.3 300/2.07 124/4.88 124/4.88 FM UL

125x80/51/2ODx3

139.7x88.9

300/2.07

124/4.88

124/4.88

FM UL

125x100/51/2ODx4

139.7x114.3

300/2.07

124/4.88

124/4.88

FM UL

150x65/61/4ODx3OD

159.0x76.1

300/2.07

140/5.50

140/5.50

FM UL

150x80/61/4ODx3

159.0x88.9

300/2.07

140/5.50

140/5.50

FM UL

150x100/61/4ODx41/4OD

159.0x108.0

300/2.07

140/5.50

140/5.50

FM UL

150x100/61/4ODx4

159.0x114.3

300/2.07

140/5.50

140/5.50

FM UL

150x50/61/2ODx2

165.1x60.3

300/2.07

140/5.50

140/5.50

FM UL

150x65/61/2ODx3OD

165.1x76.1

300/2.07

140/5.50

140/5.50

FM UL

150x80/61/2ODx3OD

165.1x88.9

300/2.07

140/5.50

140/5.50

FM UL

150x100/61/2ODx4

165.1x114.3

300/2.07

140/5.50

140/5.50

FM UL

150x125/61/2ODx51/2OD

165.1x139.7

300/2.07

140/5.50

140/5.50

FM UL

150x50/6x2

168.3x60.3

300/2.07

140/5.50

140/5.50

FM UL

150x65/6x21/2

168.3x73.0

300/2.07

140/5.50

140/5.50

FM UL

150x65/6x3OD

168.3x76.1

300/2.07

140/5.50

140/5.50

FM UL

150x80/6x3

168.3x88.9

300/2.07

140/5.50

140/5.50

FM UL

150x100/6x4

168.3x114.3

300/2.07

140/5.50

140/5.50

FM UL

200x100/8x4

219.1x114.3

300/2.07

175/6.89

175/6.89

FM UL

200x125/8x51/2OD

219.1x139.7

300/2.07

175/6.89

175/6.89

FM UL

200x150/8x61/4OD

219.1x159.0

300/2.07

175/6.89

175/6.89

FM UL

200x150/8x61/2OD

219.1x165.1

300/2.07

175/6.89

175/6.89

FM UL

200x150/8x6

219.1x168.3

300/2.07

175/6.89

175/6.89

FM UL
Shandong Zhihua Pipe Industry Co., Ltd.

Shandong Zhihua Pipe Industry Co., Ltd.

Zhihua is located in the beautiful international kite capital -- Weifang City is a collection of research and development, production, and sales of fire fittings, fire extinguishers, and other products of high-tech enterprises. The company was founded in 2007, after years of struggle, and enterprise-scale has been rapid development. Professional Grooved Reducing Tee Suppliers and Manufacturers in China. At present,The company has passed the ISO9001 quality management system IS014001 environmental management system, and OHSAS18001 occupational health and safety certification, all products of the company through the fire voluntary certification, part of the products through the United States FM, UL, SG Sand CE certification.

As Grooved Reducing Tee Factory, zhihua offer all size Grooved Reducing Tee custom. In order to improve product quality, increase production capacity and product specifications, the company began to introduce a large number of advanced production equipment in 2010 including ZZ416 automatic molding line 6 medium frequency induction 3T furnace 4 sets, Fadik 180T sand treatment system, Nidic dust removal system and a series of advanced equipment. This equipment not only stabilizes product quality but also improves production efficiency and reduces the labor intensity of workers. In order to ensure the stability of product quality, the introduction of imported spectrometers, advanced furnace carbon and silicon analyzer, metallographic image analyzer, cast iron laboratory analysis equipment, product pressure, tension, wear test equipment, and the establishment of various professional product testing laboratories.

  • 20230303-111835
  • 20230303-111855
  • Certification
  • Certification
  • Certification

Leave Your Message

Send
PRODUCTS CATEGORIES
Grooved Rigid Coupling Grooved Rigid Coupling
Grooved Flexible Coupling Grooved Flexible Coupling
Angle Pad Coupling Angle Pad Coupling
Grooved 90° Elbow Grooved 90° Elbow
Grooved Equal Tee Grooved Equal Tee
Grooved Reducing Tee Grooved Reducing Tee
Threaded Reducing Tee Threaded Reducing Tee
Grooved Mechanical Tee Grooved Mechanical Tee
Threaded Mechanical Tee Threaded Mechanical Tee
U-bolted Theaded Mechanical Tee U-bolted Theaded Mechanical Tee
Grooved Eccentric Reducer Grooved Eccentric Reducer
Grooved Concentric Reducer Grooved Concentric Reducer
Grooved Reducing Tee Features
Grooved reducing tee has a groove on each end that allows it to be quickly and easily connected to the pipes using couplings or clamps. Here are some of the application scenarios where grooved reducing tees can be used:
Plumbing Systems: Grooved reducing tees are commonly used in plumbing systems to connect pipes of different sizes. They are especially useful in retrofit applications where existing plumbing needs to be updated to accommodate new fixtures or appliances.
Industrial Applications: Grooved reducing tees are used in a variety of industrial applications, such as mining, oil and gas, and chemical processing. They are used to connect pipes of different sizes and to branch off the main line to connect to other equipment or process lines.
Water Treatment Facilities: Grooved reducing tees are used in water treatment facilities to connect pipes of different sizes and to branch off the main line to connect to treatment tanks, filters, and other equipment.
Overall, grooved reducing tees are versatile pipe fittings that can be used in a wide range of applications .
