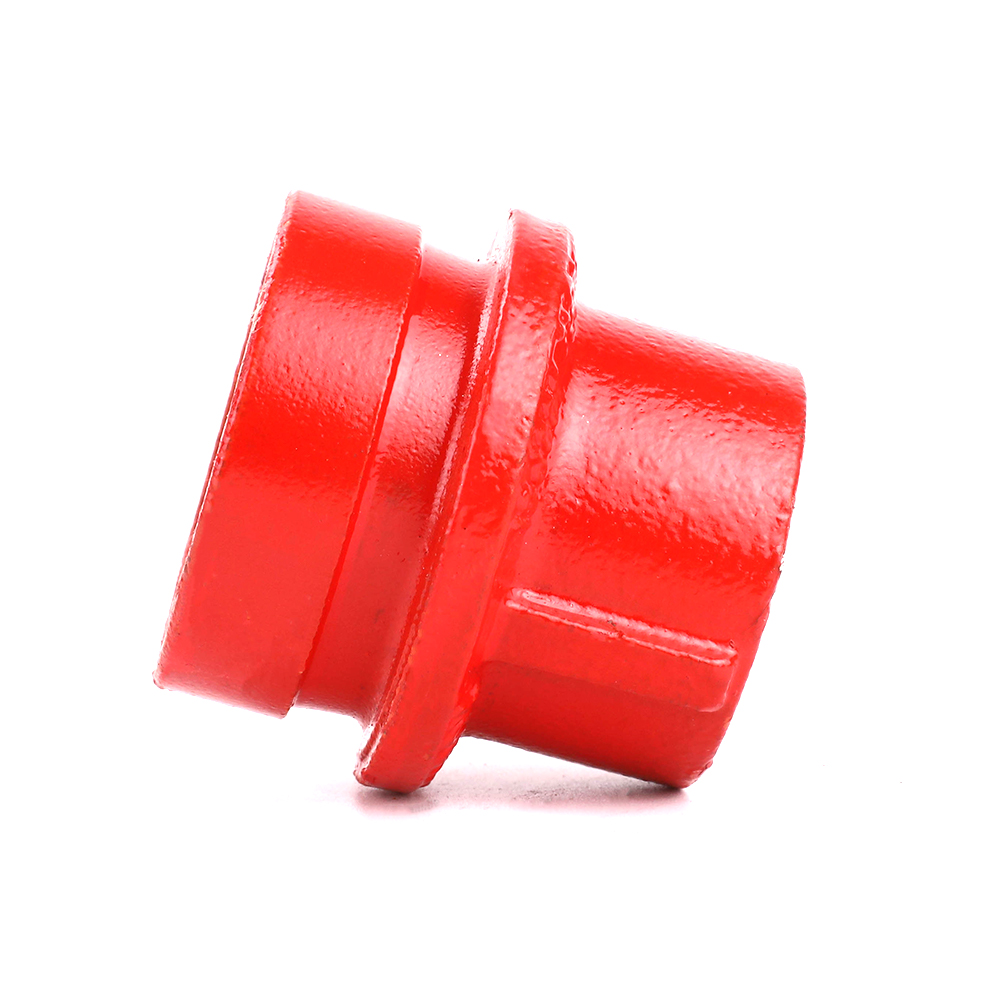

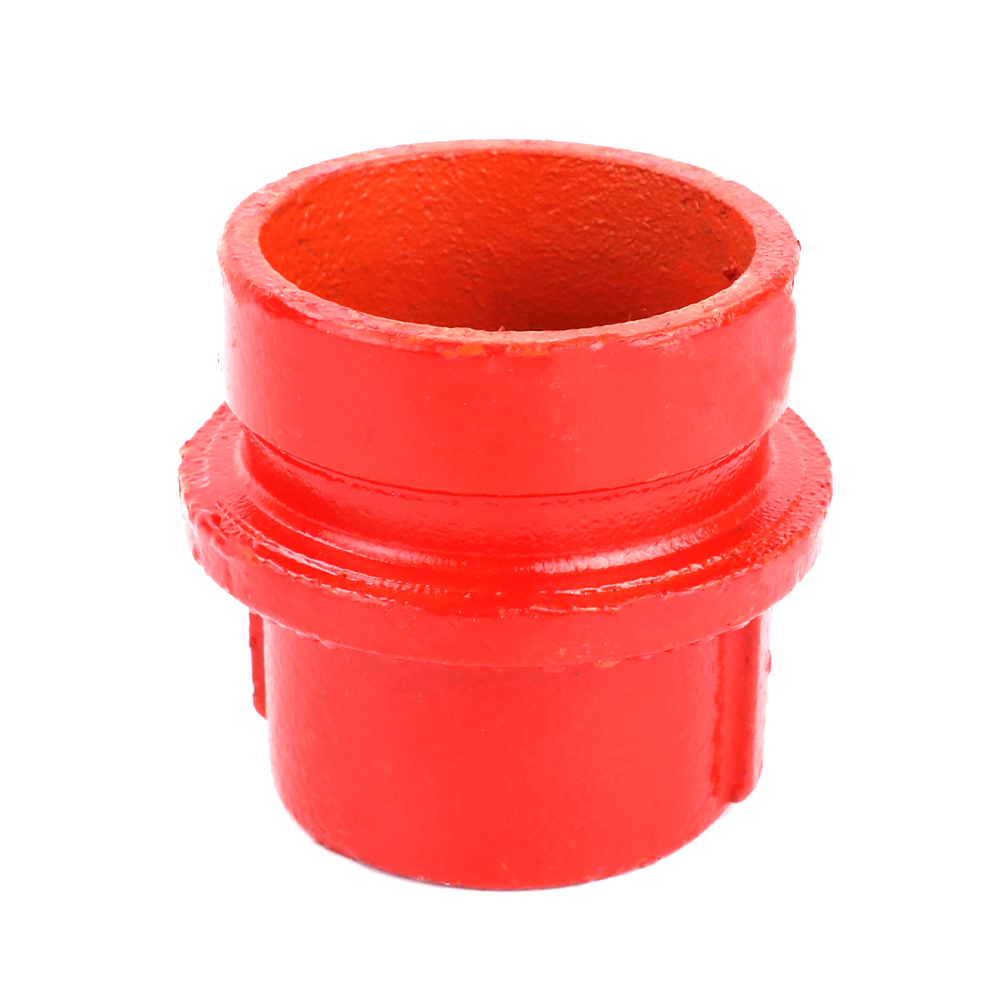

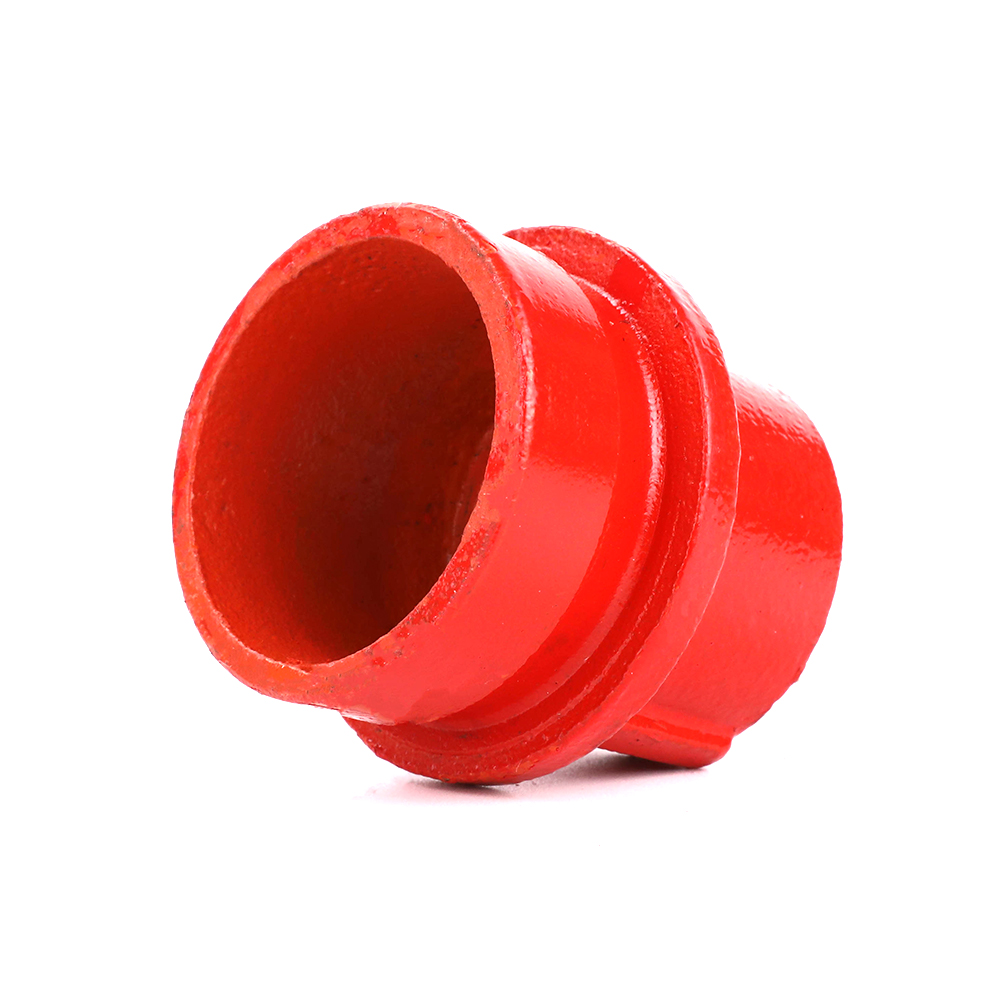

Threaded Concentric Reducer
Threaded Concentric Reducer Threaded Concentric Reducer Threaded Concentric Reducer Threaded Concentric Reducer Threaded Concentric Reducer

Threaded Concentric Reducer

Material: Ductile iron such as ASTM A536 GRADE 65-45-12, QT450-10
Size Available: 1" - 24"
Surface Treatment: hot- dip galvanized, Epoxy coated
Available Color: Red, Orange, Blue, Gray, Sliver(OEM Color supported)

Send email to us

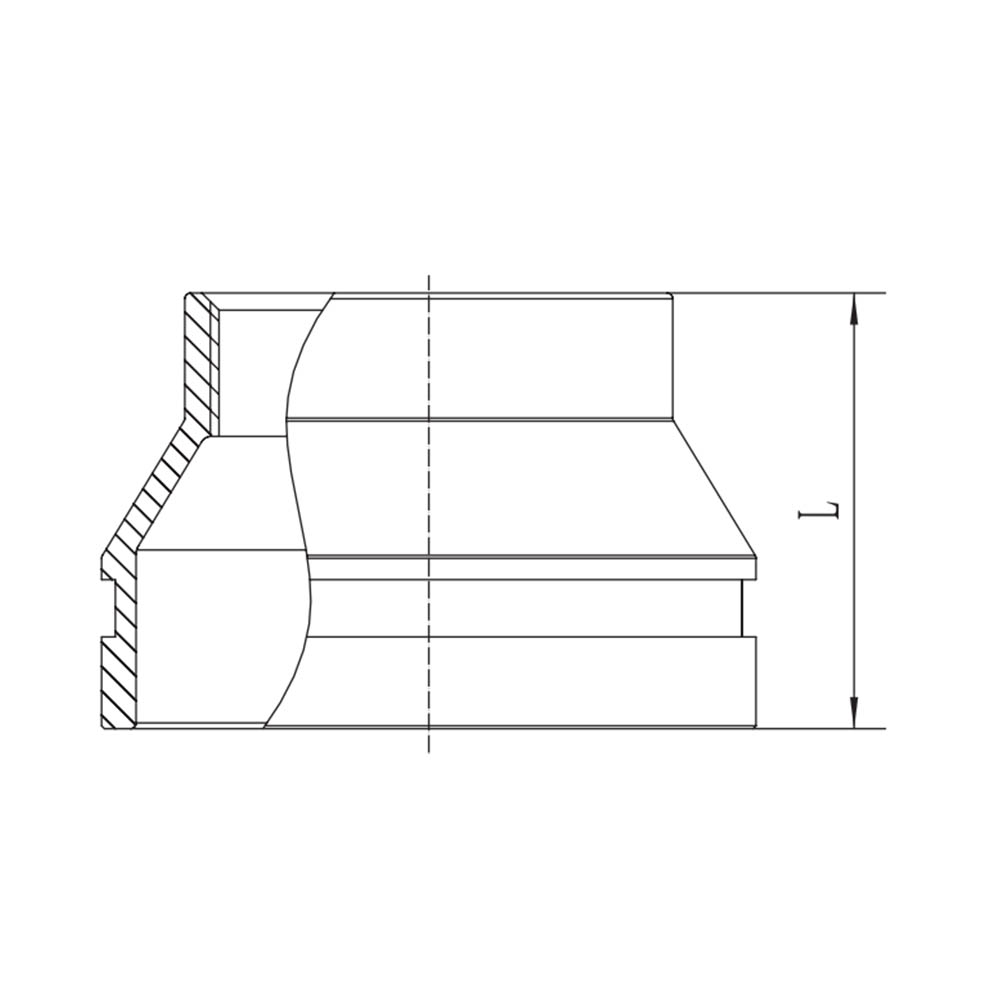

Specification
Nominal Size
mm/in		 Pipe O.D
mm		 Working
Pressure
PSI/Mpa		 Dimensions
Lmm		 Certificate
50x25/2x1 60.3x33.7 300/2.07 64 FM UL
50x32/2x11/4 60.3x42.4 300/2.07 64 FM UL
50x40/2x11/2 60.3x48.3 300/2.07 64 FM UL
65x25/21/2x1 73.0x33.7 300/2.07 64 FM UL
65x32/21/2x11/4 73.0x42.4 300/2.07 64 FM UL
65x40/21/2x11/2 73.0x48.3 300/2.07 64 FM UL
65x50/21/2x2 73.0x60.3 300/2.07 64 FM UL
65x25/3ODx1 76.1x33.7 300/2.07 64 FM UL
65x32/3ODx11/4 76.1x42.4 300/2.07 64 FM UL
65x40/3ODx11/2 76.1x48.3 300/2.07 64 FM UL
65x50/3ODx2 76.1x60.3 300/2.07 64 FM UL
80x25/3x1 88.9x33.7 300/2.07 64 FM UL
80x32/3x11/4 88.9x42.4 300/2.07 64 FM UL
80x40/3x11/2 88.9x48.3 300/2.07 64 FM UL
80x50/3x2 88.9x60.3 300/2.07 64 FM UL
80x65/3x21/2 88.9x73.0 300/2.07 64 FM UL
80x65/3x3OD 88.9x76.1 300/2.07 64 FM UL
100x25/41/4ODx1 108.0x33.7 300/2.07 76 FM UL
100x32/41/4ODx11/4 108.0x42.4 300/2.07 76 FM UL
100x40/414ODx11/2 108.0x48.3 300/2.07 76 FM UL
100x50/41/4ODx2 108.0x60.3 300/2.07 76 FM UL
100x65/41/4ODx3OD 108.0x76.1 300/2.07 76 FM UL
100x80/414ODx3 108.0x88.9 300/2.07 76 FM UL
100x25/4x1 114.3x33.7 300/2.07 76 FM UL
100x32/4x11/4 114.3x42.4 300/2.07 76 FM UL
100x40/4x11/2 114.3x48.3 300/2.07 76 FM UL
100x50/4x2 114.3x60.3 300/2.07 76 FM UL
100x65/4x21/2 114.3x73.0 300/2.07 76 FM UL
100x65/4x3OD 114.3x76.1 300/2.07 76 FM UL
100x80/4x3 114.3x88.9 300/2.07 76 FM UL
125x25/51/2ODx1 139.7x33.7 300/2.07 89 FM UL
125x32/51/2ODx11/4 139.7x42.4 300/2.07 89 FM UL
125x40/51/2ODx11/2 139.7x48.3 300/2.07 89 FM UL
125x50/51/2ODx2 139.7x60.3 300/2.07 89 FM UL
125x65/51/2ODx3OD 139.7x76.1 300/2.07 89 FM UL
125x80/51/2ODx3 139.7x88.9 300/2.07 89 FM UL
125x100/51/2ODx4 139.7x114.3 300/2.07 89 ------

150x32/61/4ODx11/4

159.0x42.4

300/2.07

89

FM UL

150x40/61/4ODx11/2

159.0x48.3

300/2.07

89

FM UL

150x50/61/4ODx2

159.0x60.3

300/2.07

89

FM UL

150x65/61/4ODx3OD

159.0x76.1

300/2.07

89

FM UL

150x80/61/4ODx3

159.0x88.9

300/2.07

89

FM UL

150x25/61/2ODx1

165.1x33.7

300/2.07

102

FM UL

150x32/612ODx11/4

165.1x42.4

300/2.07

102

FM UL

150x40/61/2ODx11/2

165.1x48.3

300/2.07

102

FM UL

150x50/61/2ODx2

165.1x60.3

300/2.07

102

FM UL

150x65/61/2ODx3OD

165.1x76.1

300/2.07

102

FM UL

150x80/61/2ODx3

165.1x88.9

300/2.07

102

FM UL

150x100/61/2ODx4

165.1x114.3

300/2.07

102

 ------

150x125/61/2ODx51/2OD

165.1x139.7

300/2.07

102

 ------

150x25/6x1

168.3x33.7

300/2.07

102

FM UL

150x32/6x11/4

168.3x42.4

300/2.07

102

FM UL

150x40/6x11/2

168.3x48.3

300/2.07

102

FM UL

150x50/6x2

168.3x60.3

300/2.07

102

FM UL

150x65/6x21/2

168.3x73.0

300/2.07

102

 ------

150x65/6x3OD

168.3x76.1

300/2.07

102

FM UL

150x80/6x3

168.3x88.9

300/2.07

102

FM UL

200x25/8x1

219.1x33.7

300/2.07

127

FM UL

200x32/8x11/4

219.1x42.4

300/2.07

127

FM UL

200x40/8x11/2

219.1x48.3

300/2.07

127

FM UL

200x50/8x2

219.1x60.3

300/2.07

127

FM UL

200x65/8x3OD

219.1x76.1

300/2.07

127

FM UL

200x80/8x3

219.1x88.9

300/2.07

127

FM UL

200x100/8x4

219.1x114.3

300/2.07

127

FM UL
Shandong Zhihua Pipe Industry Co., Ltd.

Shandong Zhihua Pipe Industry Co., Ltd.

Zhihua is located in the beautiful international kite capital -- Weifang City is a collection of research and development, production, and sales of fire fittings, fire extinguishers, and other products of high-tech enterprises. The company was founded in 2007, after years of struggle, and enterprise-scale has been rapid development. Professional Threaded Concentric Reducer Suppliers and Manufacturers in China. At present,The company has passed the ISO9001 quality management system IS014001 environmental management system, and OHSAS18001 occupational health and safety certification, all products of the company through the fire voluntary certification, part of the products through the United States FM, UL, SG Sand CE certification.

As Threaded Concentric Reducer Factory, zhihua offer all size Threaded Concentric Reducer custom. In order to improve product quality, increase production capacity and product specifications, the company began to introduce a large number of advanced production equipment in 2010 including ZZ416 automatic molding line 6 medium frequency induction 3T furnace 4 sets, Fadik 180T sand treatment system, Nidic dust removal system and a series of advanced equipment. This equipment not only stabilizes product quality but also improves production efficiency and reduces the labor intensity of workers. In order to ensure the stability of product quality, the introduction of imported spectrometers, advanced furnace carbon and silicon analyzer, metallographic image analyzer, cast iron laboratory analysis equipment, product pressure, tension, wear test equipment, and the establishment of various professional product testing laboratories.

  • 20230303-111835
  • 20230303-111855
  • Certification
  • Certification
  • Certification

Leave Your Message

Send
PRODUCTS CATEGORIES
Grooved Rigid Coupling Grooved Rigid Coupling
Grooved Flexible Coupling Grooved Flexible Coupling
Angle Pad Coupling Angle Pad Coupling
Grooved 90° Elbow Grooved 90° Elbow
Grooved Equal Tee Grooved Equal Tee
Grooved Reducing Tee Grooved Reducing Tee
Threaded Reducing Tee Threaded Reducing Tee
Grooved Mechanical Tee Grooved Mechanical Tee
Threaded Mechanical Tee Threaded Mechanical Tee
U-bolted Theaded Mechanical Tee U-bolted Theaded Mechanical Tee
Grooved Eccentric Reducer Grooved Eccentric Reducer
Grooved Concentric Reducer Grooved Concentric Reducer
Threaded Concentric Reducer Features
Threaded concentric reducers offer several advantages over other types of reducers.
Versatility: Threaded concentric reducers can be used in a wide variety of piping systems, including those that handle gas, oil, steam, water, and other fluids.
Flexibility: Threaded concentric reducers can be easily removed and replaced if needed, making them a flexible solution for changing piping systems.
Reduced pressure drop: Threaded concentric reducers are designed to reduce the flow of fluid in the piping system without causing significant pressure drops. This can help maintain consistent flow rates and prevent damage to the system.
Easy maintenance: Threaded concentric reducers are easy to inspect and maintain, as they can be easily removed and replaced if necessary. This can help prevent downtime and ensure the continued operation of the piping system.
