Grooved Flange Adaptor Manufacturer

Home / Products / Grooved Flange / Grooved Flange Adaptor

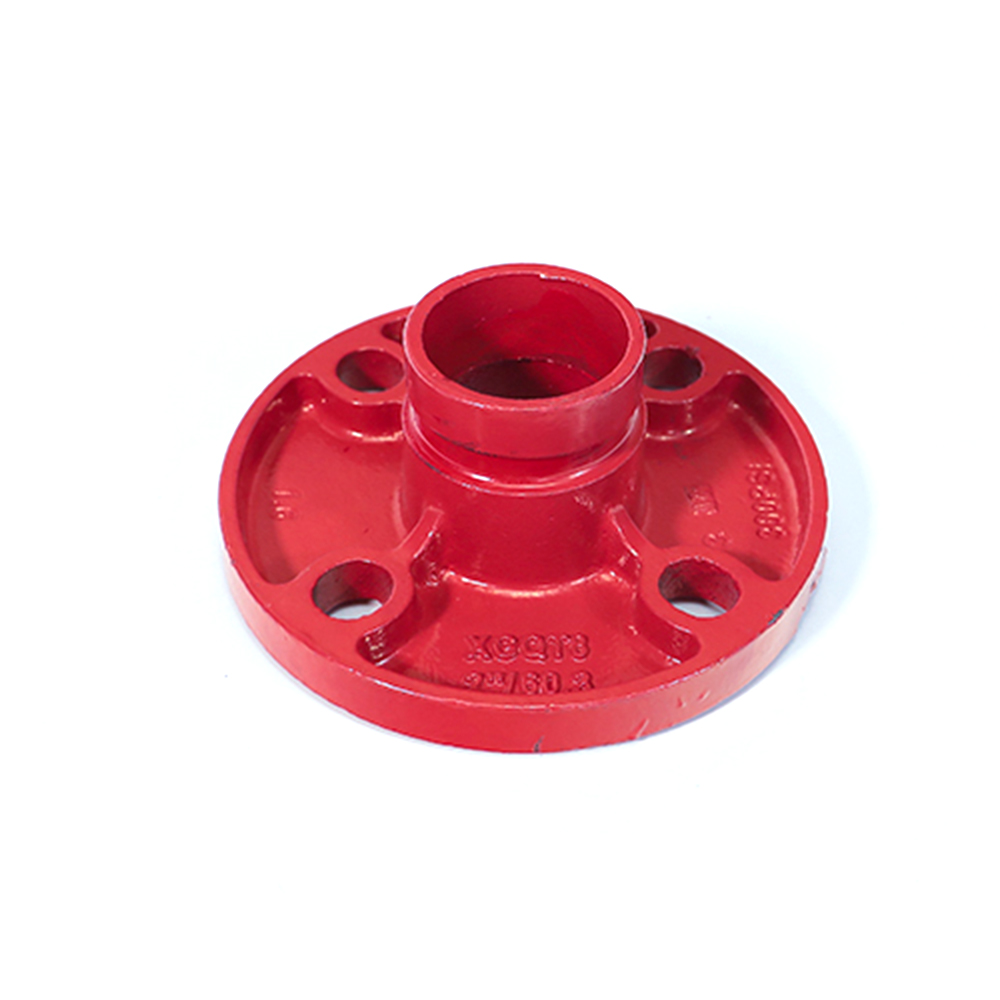

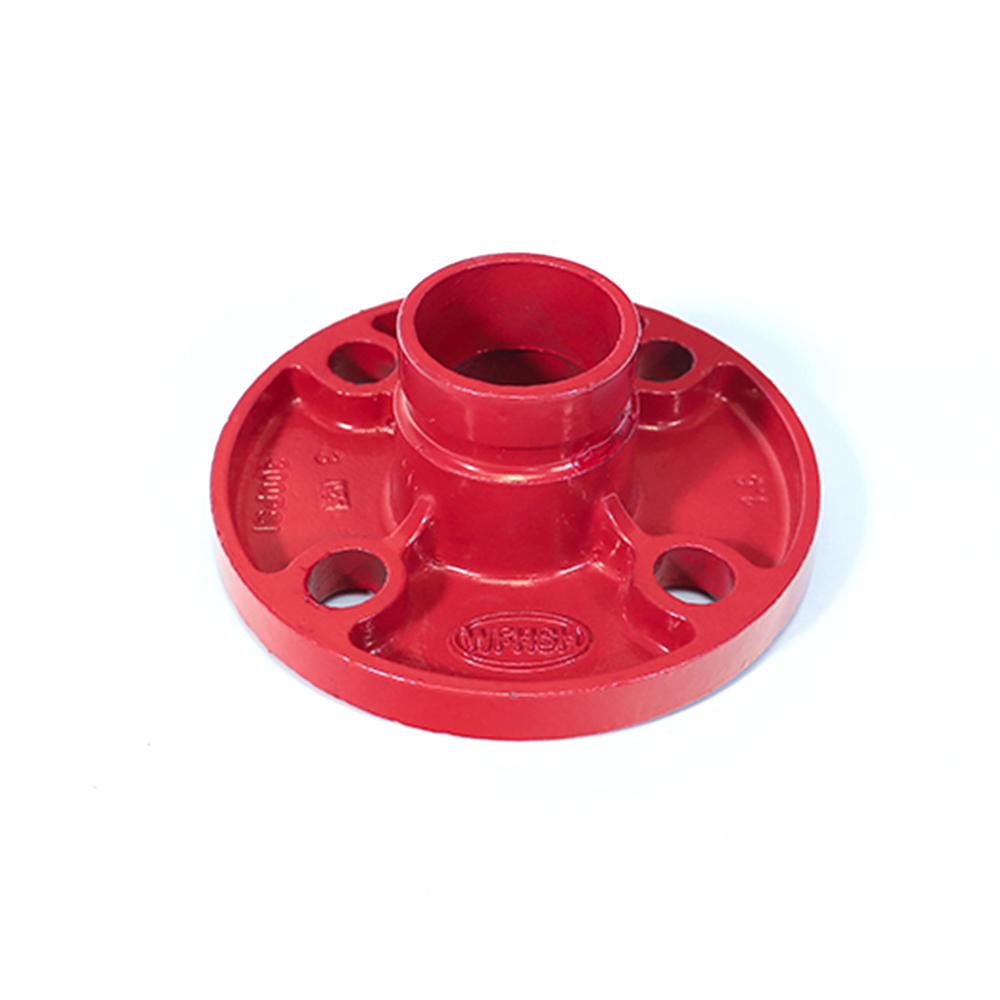

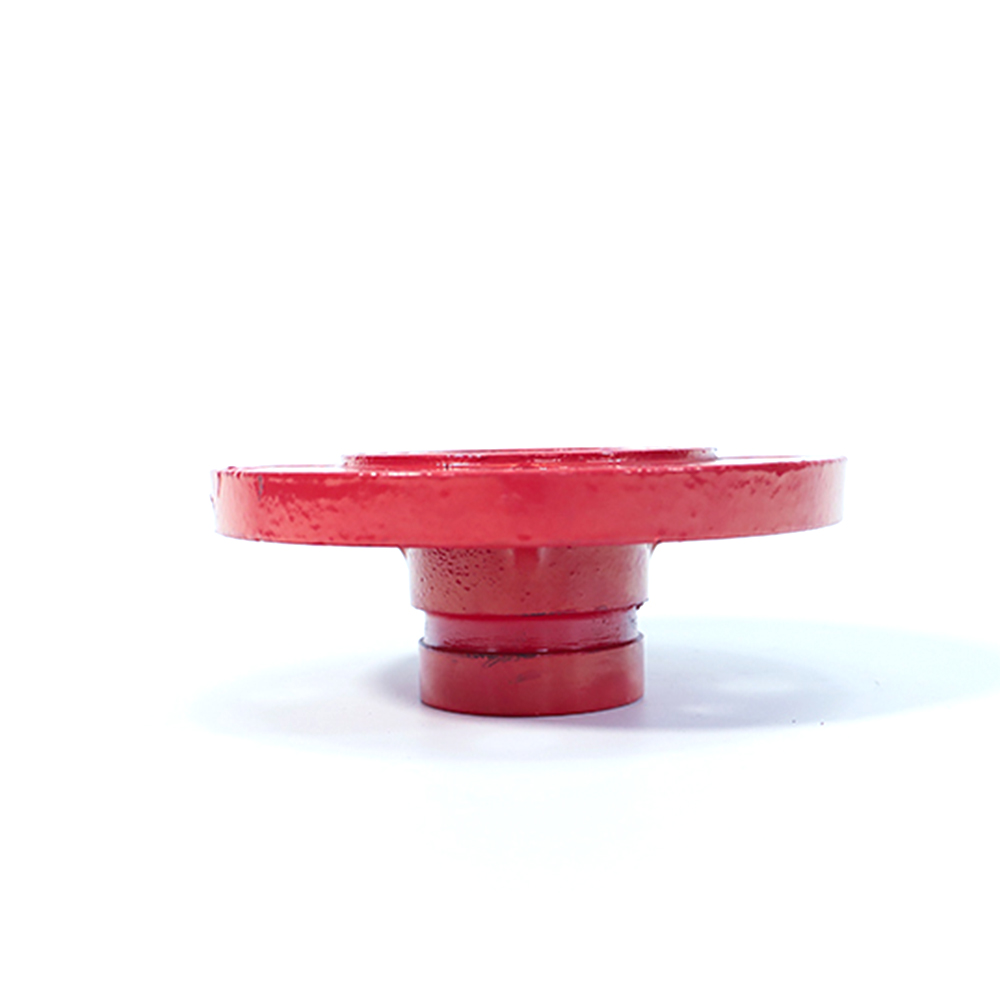

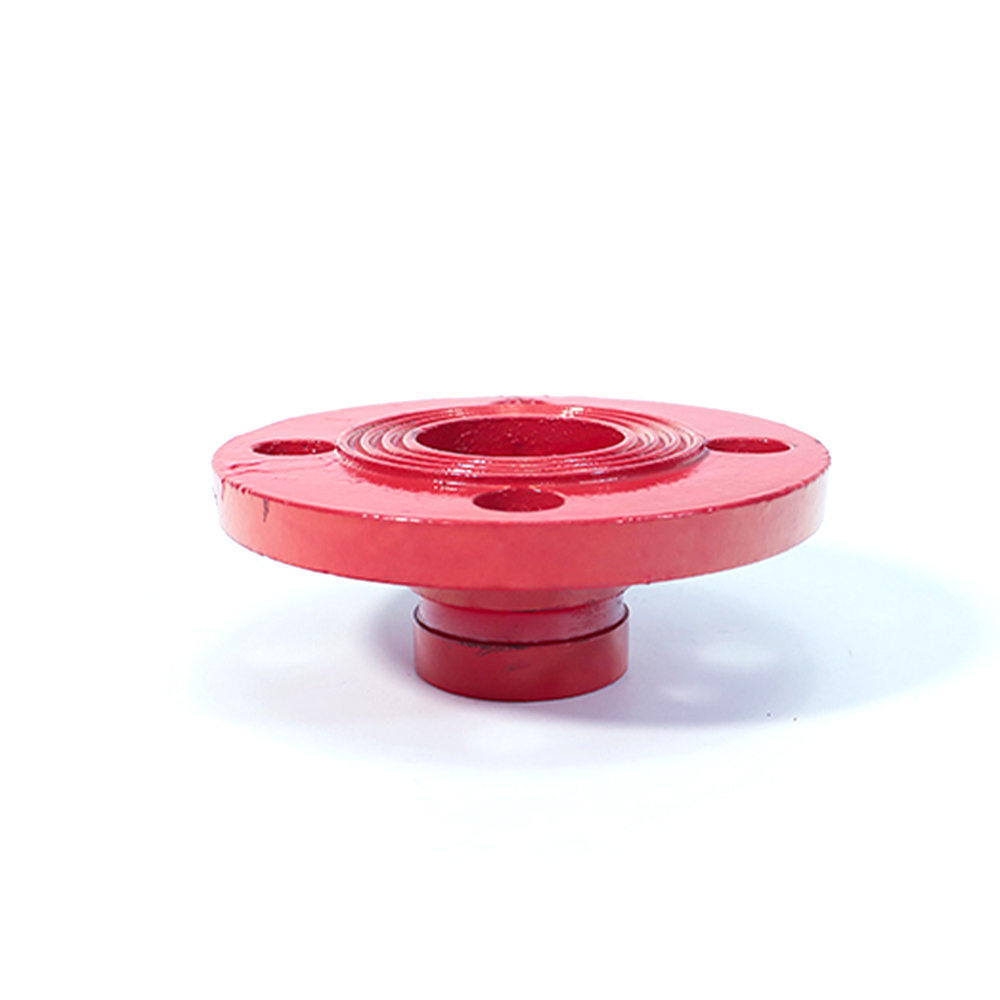

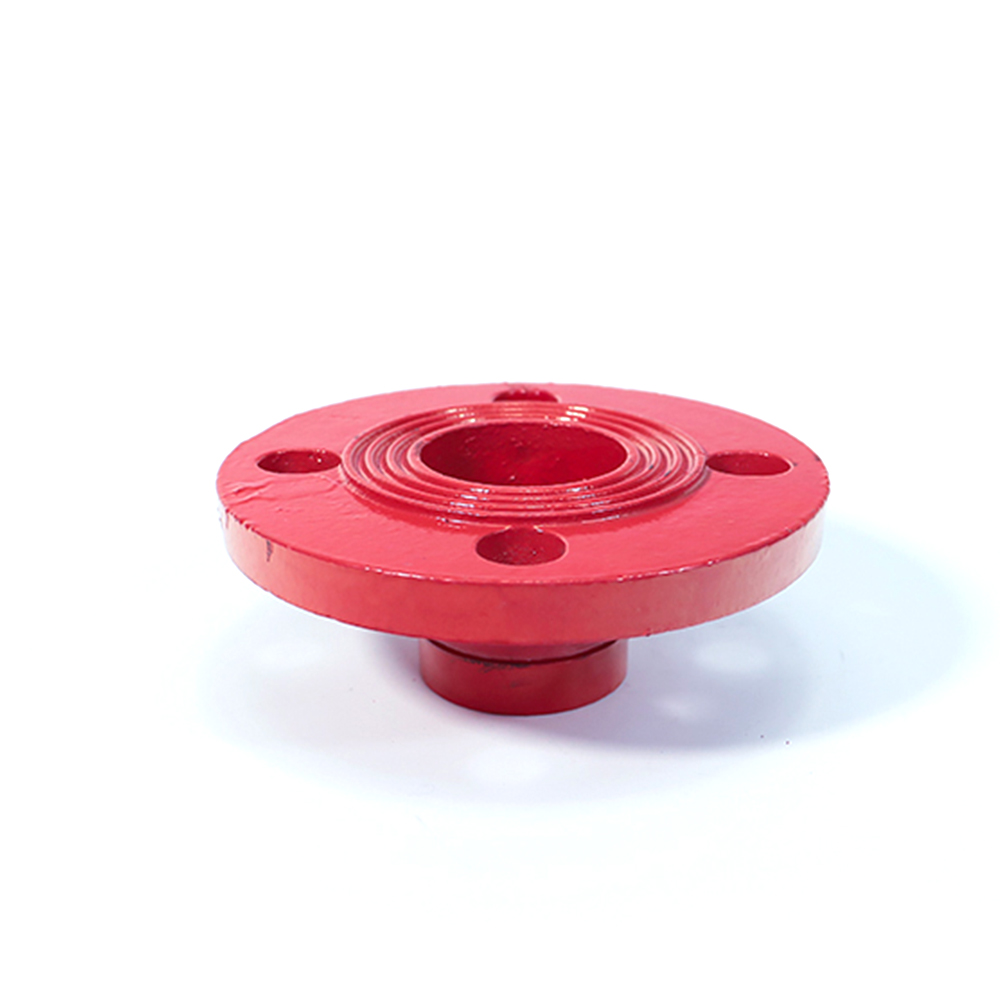

Grooved Flange Adaptor
Grooved Flange Adaptor Grooved Flange Adaptor Grooved Flange Adaptor Grooved Flange Adaptor Grooved Flange Adaptor Grooved Flange Adaptor Grooved Flange Adaptor

Grooved Flange Adaptor

Material: Ductile iron such as ASTM A536 GRADE 65-45-12, QT450-10
Size Available: 1" - 12"
Surface Treatment: hot- dip galvanized, Epoxy coated
Available Color: Red, Orange, Blue, Gray, Sliver(OEM Color supported)

Send email to us
Specification
Nominal Size
mm/in
Pipe O.D
mm
Working
Pressure
PSI/Mpa
Dimensions mm/in
Certificate
L
H
n-Φ
50/2
60.3
300/2.07
125/4.92
65/2.56
4-M16
FM UL
65/21/2
73
300/2.07
140/5.51
 65/2.56
4-M16
FM UL
65/21/2
76.1
300/2.07
145/5.71
 65/2.56
4-M16
FM UL
80/3
88.9
300/2.07
160/6.30
 65/2.56
8-M16
FM UL
100/4
108
300/2.07
180/7.09
 70/2.76
8-M16
FM UL
100/4
114.3
300/2.07
180/7.09
 70/2.76
8-M16
FMUL
125/5
133
300/2.07
210/8.27
 70/2.76
8-M16
FM UL
125/5
139.7
300/2.07
210/8.27
 70/2.76
8-M16
FM UL
125/5
141.3
300/2.07
216/8.50
 70/2.76
8-M16
FM UL
150/6
159
300/2.07
240/9.45
 70/2.76
8-M20
FM UL
150/6
165.1
300/2.07
240/9.45
 70/2.76
8-M20
FM UL
150/6
168.3
300/2.07
240/9.45
 70/2.76
8-M20
FM UL
200/8
219.1
300/2.07
295/11.61
 80/3.16
12-M20
FM UL
Shandong Zhihua Pipe Industry Co., Ltd.

Shandong Zhihua Pipe Industry Co., Ltd.

Zhihua is located in the beautiful international kite capital -- Weifang City is a collection of research and development, production, and sales of fire fittings, fire extinguishers, and other products of high-tech enterprises. The company was founded in 2007, after years of struggle, and enterprise-scale has been rapid development. Professional Grooved Flange Adaptor Suppliers and Manufacturers in China. At present,The company has passed the ISO9001 quality management system IS014001 environmental management system, and OHSAS18001 occupational health and safety certification, all products of the company through the fire voluntary certification, part of the products through the United States FM, UL, SG Sand CE certification.

As Grooved Flange Adaptor Factory, zhihua offer all size Grooved Flange Adaptor custom. In order to improve product quality, increase production capacity and product specifications, the company began to introduce a large number of advanced production equipment in 2010 including ZZ416 automatic molding line 6 medium frequency induction 3T furnace 4 sets, Fadik 180T sand treatment system, Nidic dust removal system and a series of advanced equipment. This equipment not only stabilizes product quality but also improves production efficiency and reduces the labor intensity of workers. In order to ensure the stability of product quality, the introduction of imported spectrometers, advanced furnace carbon and silicon analyzer, metallographic image analyzer, cast iron laboratory analysis equipment, product pressure, tension, wear test equipment, and the establishment of various professional product testing laboratories.

  • 20230303-111835
  • 20230303-111855
  • Certification
  • Certification
  • Certification

Leave Your Message

Send
PRODUCTS CATEGORIES
Grooved Rigid Coupling Grooved Rigid Coupling
Grooved Flexible Coupling Grooved Flexible Coupling
Angle Pad Coupling Angle Pad Coupling
Grooved 90° Elbow Grooved 90° Elbow
Grooved Equal Tee Grooved Equal Tee
Grooved Reducing Tee Grooved Reducing Tee
Threaded Reducing Tee Threaded Reducing Tee
Grooved Mechanical Tee Grooved Mechanical Tee
Threaded Mechanical Tee Threaded Mechanical Tee
U-bolted Theaded Mechanical Tee U-bolted Theaded Mechanical Tee
Grooved Eccentric Reducer Grooved Eccentric Reducer
Grooved Concentric Reducer Grooved Concentric Reducer
Grooved Flange Adaptor Features
Grooved adapter flanges offer several advantages over traditional flanges:
Reduced Maintenance Costs: Grooved adapter flanges require less maintenance than traditional flanges because they do not require bolts or gaskets. This reduces the risk of leaks and eliminates the need for periodic maintenance and replacement of gaskets and bolts.
Improved Safety: Grooved adapter flanges are safer to use than traditional flanges because they eliminate the need for hot work, such as welding and cutting, which can pose a risk of fire and explosion.
Overall, the grooved adapter flange is a versatile and cost-effective alternative to traditional flanges that offers several advantages in terms of installation, maintenance, safety, and cost.
