End Cap
End Cap End Cap End Cap End Cap End Cap End Cap

End Cap

Material: Ductile iron such as ASTM A536 GRADE 65-45-12, QT450-10
Size Available: 1" - 24"
Surface Treatment: hot- dip galvanized, Epoxy coated
Available Color: Red, Orange, Blue, Gray, Sliver(OEM Color supported)

Send email to us
Specification
Nominal Size
mm/in		 Pipe O.D
mm		 Working
Pressure

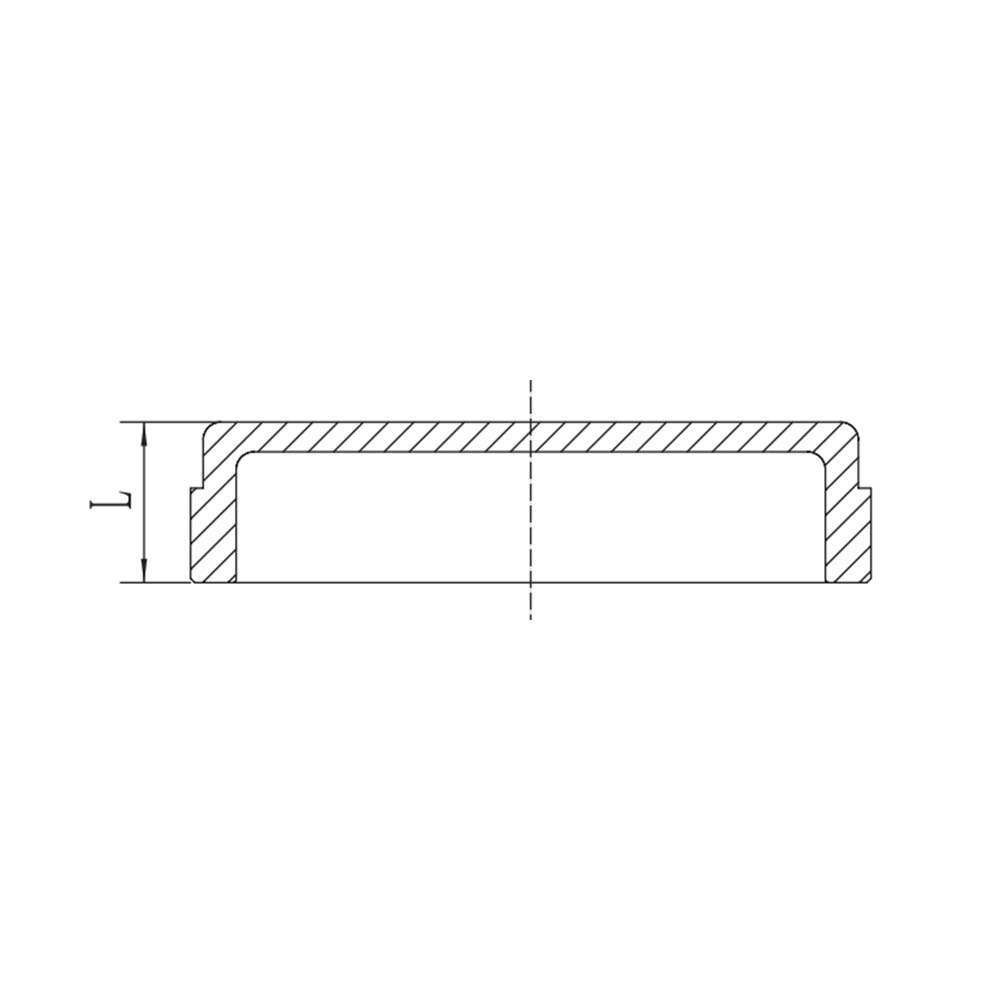

PSI/Mpa		 Dimensions L
mm/in		 Certificate
25/1 33.7 300/2.07 24/0.87 FM UL
32/11/4 42.4 300/2.07 24/0.94 FM UL
40/11/2 48.3 300/2.07 24/0.94 FM UL
50/2 60.3 300/2.07 24/0.94 FM UL
65/21/2 76.1 300/2.07 24/0.94 FM UL
80/3 88.9 300/2.07 24/0.94 FM UL
100/4 114.3 300/2.07 26/1.02 FM UL
125/5 139.7 300/2.07 26/1.02 FM UL
150/6 165.1 300/2.07 26/1.02 FM UL
150/6 168.3 300/2.07 26/1.02 FM UL
200/8 219.1 300/2.07 28/1.10 FM UL
Shandong Zhihua Pipe Industry Co., Ltd.

Shandong Zhihua Pipe Industry Co., Ltd.

Zhihua is located in the beautiful international kite capital -- Weifang City is a collection of research and development, production, and sales of fire fittings, fire extinguishers, and other products of high-tech enterprises. The company was founded in 2007, after years of struggle, and enterprise-scale has been rapid development. Professional End Cap Suppliers and Manufacturers in China. At present,The company has passed the ISO9001 quality management system IS014001 environmental management system, and OHSAS18001 occupational health and safety certification, all products of the company through the fire voluntary certification, part of the products through the United States FM, UL, SG Sand CE certification.

As End Cap Factory, zhihua offer all size End Cap custom. In order to improve product quality, increase production capacity and product specifications, the company began to introduce a large number of advanced production equipment in 2010 including ZZ416 automatic molding line 6 medium frequency induction 3T furnace 4 sets, Fadik 180T sand treatment system, Nidic dust removal system and a series of advanced equipment. This equipment not only stabilizes product quality but also improves production efficiency and reduces the labor intensity of workers. In order to ensure the stability of product quality, the introduction of imported spectrometers, advanced furnace carbon and silicon analyzer, metallographic image analyzer, cast iron laboratory analysis equipment, product pressure, tension, wear test equipment, and the establishment of various professional product testing laboratories.

  • 20230303-111835
  • 20230303-111855
  • Certification
  • Certification
  • Certification

Leave Your Message

Send
PRODUCTS CATEGORIES
Grooved Rigid Coupling Grooved Rigid Coupling
Grooved Flexible Coupling Grooved Flexible Coupling
Angle Pad Coupling Angle Pad Coupling
Grooved 90° Elbow Grooved 90° Elbow
Grooved Equal Tee Grooved Equal Tee
Grooved Reducing Tee Grooved Reducing Tee
Threaded Reducing Tee Threaded Reducing Tee
Grooved Mechanical Tee Grooved Mechanical Tee
Threaded Mechanical Tee Threaded Mechanical Tee
U-bolted Theaded Mechanical Tee U-bolted Theaded Mechanical Tee
Grooved Eccentric Reducer Grooved Eccentric Reducer
Grooved Concentric Reducer Grooved Concentric Reducer
End Cap Features
Grooved end cap is a type of fitting that is used to seal the end of a grooved pipe or tubing system. The cap is designed to fit snugly onto the end of the pipe or tubing and is secured in place using a coupling or clamp.
Grooved end caps are commonly used in fire protection systems, HVAC systems, and other industrial applications where piping or tubing systems need to be easily assembled, disassembled, and reconfigured.
They come in a range of sizes and configurations to match the dimensions of the pipe or tubing system.
