Common Issues and Solutions for Grooved Pipe Couplings

Table of Contents
‌

Introduction to Grooved Coupling Systems‌
‌

Top 5 Operational Failures‌
‌

Step-by-Step Troubleshooting Guides‌
‌

Preventive Maintenance Strategies‌

‌2025 Industry Innovations‌

   ‌

Case Studies
‌‌

1.Introduction to Grooved Coupling Systems

Grooved couplings, widely used in fire protection, HVAC, and industrial pipelines, face challenges from pressure fluctuations, corrosion, and improper installation. This article aligns with ‌ISO 21807-2025‌ seismic design standards and ‌ASTM F1548-2024‌ material specifications.

2.Top 5 Operational Failures

2.1 Leakage at Joints
‌

Causes‌:
Degraded EPDM gaskets (over 8 years service life)
Misaligned grooves due to >3° angular deflection
‌Solutions‌:
Replace with ‌fluorocarbon gaskets‌ for chemical resistance
Use laser-guided alignment tools during installation

2.2 Corrosion in Humid Environments

‌Causes‌:
Zinc coating damage (below 85μm thickness)
Galvanic corrosion in mixed-metal systems
‌Solutions‌:
Apply ‌cold-sprayed aluminum coating‌ (per SSPC-CS 23.00)
Install dielectric insulation kits (e.g., Victaulic Style 955)

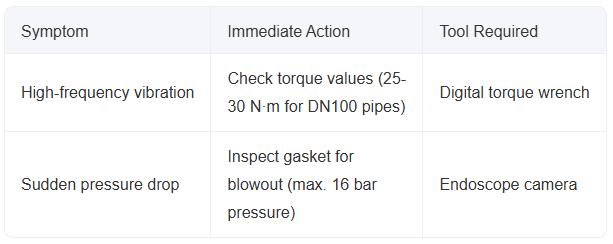

3.Step-by-Step Troubleshooting Guides

4. Preventive Maintenance Strategies
‌

Quarterly‌: Ultrasonic thickness testing for pipe walls
‌Biannually‌: Re-torque all couplings with ±5% tolerance
‌Annually‌: Replace gaskets in fire protection systems (NFPA 13-2025 compliance)

5. 2025 Industry Innovations
‌

Smart Couplings‌: RFID-enabled sensors (e.g., Viking Group’s iTECH system) monitor real-time stress and leakage.
‌Eco-friendly Materials‌: BASF’s bio-based sealants reduce 62% carbon footprint.

6. Case Studies
‌

Project‌: Dubai Sky Tower Cooling System (2024)
‌Issue‌: Repeated joint failures under 45°C thermal cycling
‌Solution‌: Upgraded to ‌Titanium-Nickel alloy couplings‌ with 0.15mm tolerance grooves
