How to choose the appropriate type of GROOVED PIPE FITTING TEE?

Content:
1.Installation Environment Factors
2.Existing Pipeline Situation
3.Construction Convenience and Cost Considerations
4.Pipeline Material and Pipe Diameter Adaptation

When choosing the appropriate type of groove fitting tee, the following key aspects can be considered:

Installation Environment Factors

1.Space Conditions:

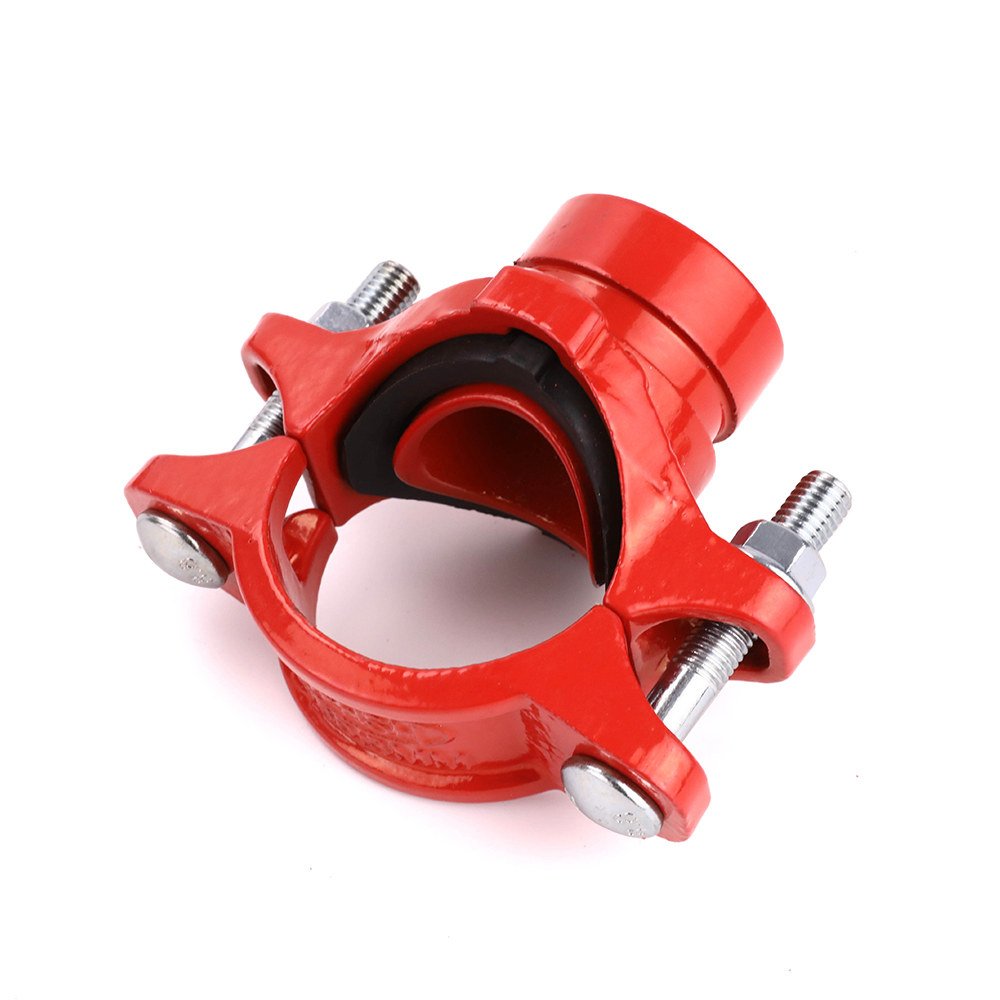

1.If the construction space is relatively spacious and the operation is not restricted, both the ordinary tee and the mechanical tee can be selected. However, the installation process of the ordinary tee is more conventional and can be carried out according to the standard procedures. If the space is narrow, such as in equipment-intensive machine rooms or underground pipe galleries when carrying out pipeline renovation or adding new branches, the mechanical tee has obvious advantages. It can directly drill holes on the existing pipelines to install branches without reserving too much additional space for docking operations, which can effectively solve the problem of insufficient space.

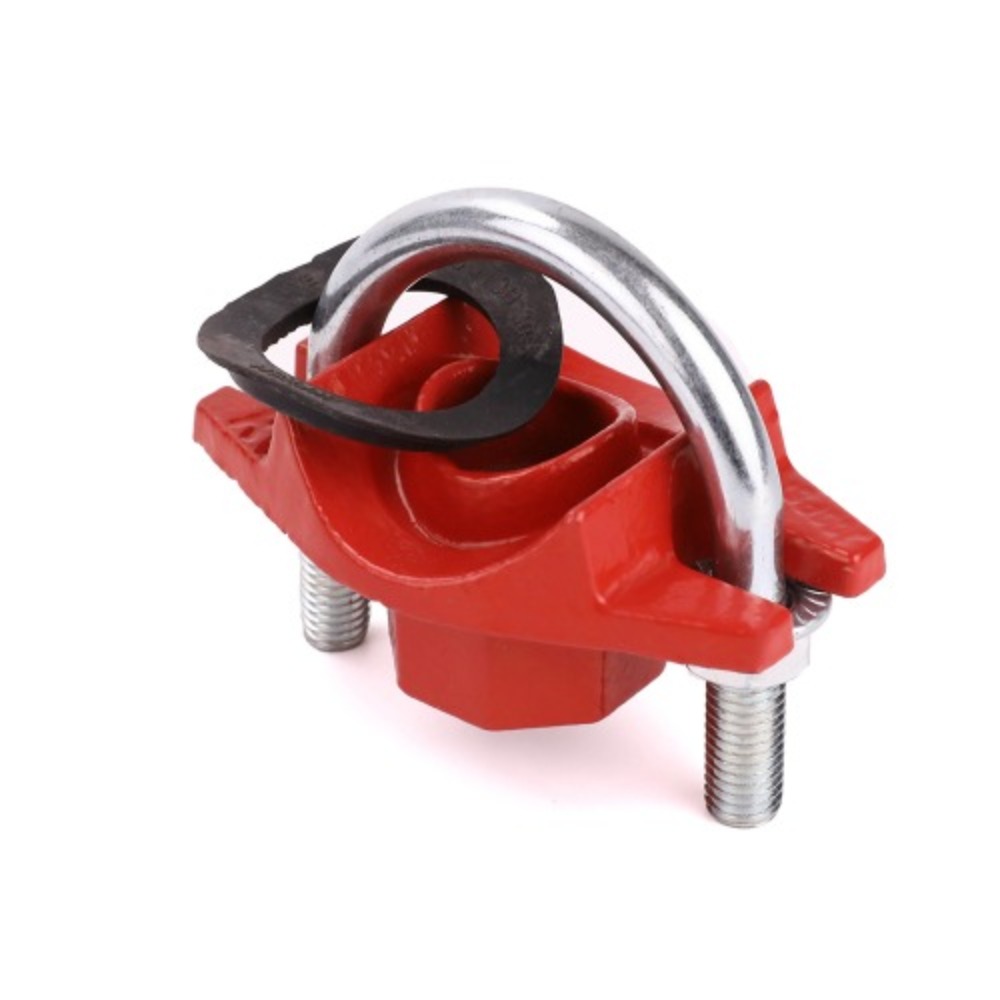

2.When there are unavoidable large obstacles in the pipeline laying route and it is necessary to change the pipeline direction to achieve branching, the U-shaped mechanical tee is a better choice. With its unique U-shaped structure, it can flexibly bypass obstacles to complete pipeline connection and branch layout.

2.Existing Pipeline Situation:

1.When renovating or expanding an existing operating pipeline system, if it is necessary to minimize operations such as truncating and disassembling the original pipelines as much as possible, the mechanical tee is more suitable. It can directly drill holes on the pipeline to install branch circuits without affecting the normal operation of the pipeline, reducing the interference of construction on the entire system. While the ordinary tee often needs to be reserved and docked in the early stage of pipeline planning and installation, and it is not very suitable for such later renovations without large-scale changes to the original pipeline.

Pipeline System Functional Requirements

1.Fluid Transportation Stability Requirements:

1.For pipeline systems with extremely high requirements for sealing and stability, such as fire sprinkler systems, the ordinary tee can provide reliable connections under the condition of ensuring the accuracy of groove processing and selecting high-quality sealing rubber rings, ensuring long-term and stable fluid transportation and preventing leakage from affecting the fire extinguishing function. For mechanical tees and U-shaped mechanical tees, special attention should be paid to whether the sealing measures at the hole-opening and connection parts can meet the strict fire protection regulations and ensure that there will be no leakage problems under pressure changes and other situations.

2.In some pipeline environments with slight vibrations or thermal expansion and contraction changes (such as long-distance outdoor heating pipelines and indoor pipelines affected by equipment operation vibrations), the U-shaped mechanical tee can buffer certain stresses due to its own structure, which is relatively more conducive to maintaining the stability of fluid transportation and reducing the risk of damage to connection parts and fluid leakage caused by pipeline deformation and other factors.

2.Branch Flow Distribution Requirements:

1.If each branch pipeline has relatively balanced and precise requirements for flow distribution, the ordinary tee can better achieve relatively uniform flow distribution according to the standard pipe diameter ratio during design and manufacturing. For mechanical tees and U-shaped mechanical tees, when installing, it is necessary to consider the influence of factors such as hole-opening positions and pipe diameter matching on flow distribution. Especially in some industrial production pipeline systems with strict flow control, reasonable hydraulic calculations and actual tests are required to ensure that the branch flow meets the process requirements.

Construction Convenience and Cost Considerations

1.Construction Difficulty:

1.The installation of the ordinary tee has a relatively mature standard process, which is easy for construction personnel to master. As long as the groove processing, pipeline docking, and sealing installation are carried out in accordance with the specifications. The mechanical tee requires professional hole-opening equipment and accurate hole-opening operation techniques, and the skill requirements for construction personnel are slightly higher. In addition to the hole-opening requirements, the U-shaped mechanical tee also needs to consider the installation and positioning of its curved structure, and the installation difficulty is relatively greater.

2.In projects with high requirements for construction progress, if the construction personnel are not proficient in the installation techniques of mechanical tees and U-shaped mechanical tees, choosing the ordinary tee combined with a reasonable construction plan may be more conducive to completing the project tasks on time.

2.Cost Factors:

1.Under the same specifications, the cost of the ordinary tee is usually relatively stable and the price may be relatively low. Due to its special hole-opening installation function and the need for supporting professional equipment, the cost of the mechanical tee is generally higher than that of the ordinary tee. Because the U-shaped mechanical tee has a more complex structure and relatively higher production process and installation difficulties, its price is often the highest among the three types. Therefore, in projects with limited budgets, it is necessary to comprehensively weigh the costs and actual use effects of different tee types for selection.

Pipeline Material and Pipe Diameter Adaptation

1.Pipeline Material Matching:
Different materials of pipelines (such as steel pipes, ductile iron pipes, etc.) have different physical properties and also have differences in the compatibility of groove fitting tees. It is necessary to ensure that the selected tee type is compatible with the pipeline in terms of material. For example, some mechanical tees may have better designs for hole-opening and sealing of specific material pipelines, while the ordinary tee may require additional sealing treatment measures when connecting some special material pipelines. The appropriate tee should be selected according to the actual pipeline material used.

2.Pipe Diameter Adaptation:
It is necessary to ensure that the diameter specifications of each interface of the selected tee can accurately match the diameters of the main pipeline and branch pipeline actually installed. Whether it is an ordinary tee, a mechanical tee or a U-shaped mechanical tee, they all have their own different diameter series to choose from. Only when the pipe diameter is accurately matched can a tight connection and smooth fluid transportation be ensured, and problems such as installation difficulties and increased fluid resistance caused by pipe diameter mismatch can be avoided.
