Differences between commonly used couplings

Content
1. Introduction
2. Structural Features
3. Sealing Performance and Principle
4. Applicable Pipeline Working Conditions
5. Installation Requirements
6. Cost Differences
7. Conclusion

### Introduction
There are primarily two commonly used types of grooved couplings, namely rigid couplings and flexible couplings. These two types possess distinct characteristics, and the differences between them are elaborated below.

### Structural Features
- **Rigid couplings**:

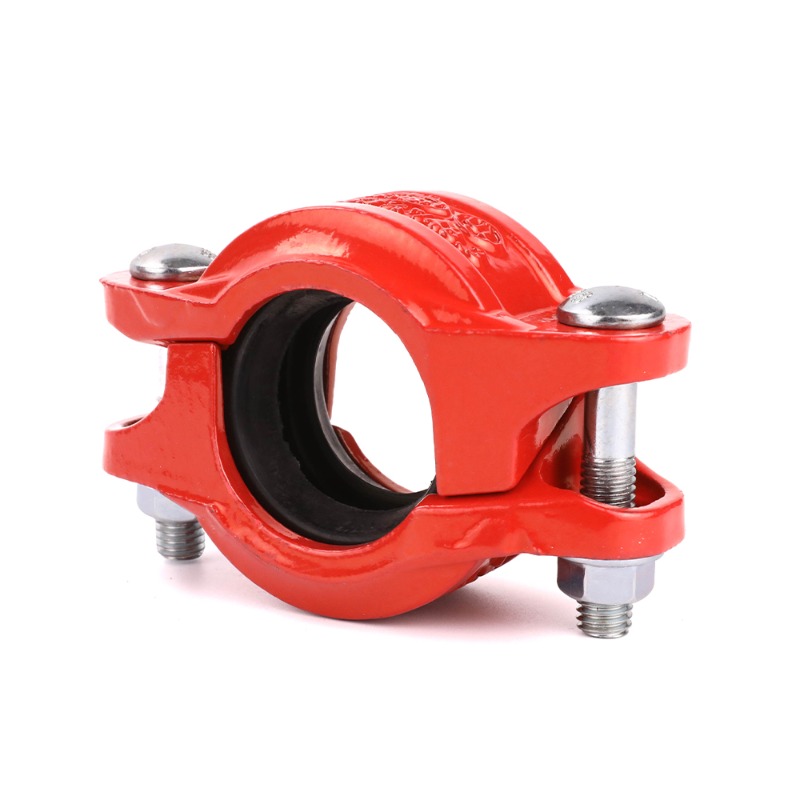

The structure of rigid couplings is relatively straightforward. Generally, it is composed of several components such as the clamp body, bolts, and nuts. The clamp body is typically a ring-shaped metal element with ear plates on both sides. By tightening the bolts and nuts, the pipes or pipe fittings can be firmly held and fixed in place. Moreover, a rubber sealing ring is usually placed inside to ensure proper sealing. The overall shape of rigid couplings is rather regular and rigid, lacking movable joints or other complex structures.

- **Flexible couplings**:
Flexible couplings share some basic components with rigid couplings, including the clamp body, bolts, and nuts. However, they also feature special flexible structures. For instance, certain flexible couplings are equipped with movable joints, elastic elements, or adopt unique hinge designs at the connection points. Thanks to these structures, flexible couplings are capable of adapting to slight displacements and angular changes of the pipes to a certain extent.

### Sealing Performance and Principle
- **Rigid couplings**:
Rigid couplings mainly rely on the compression and deformation of the rubber sealing ring to achieve effective sealing. When the bolts are tightened to make the clamp closely hold the pipes and pipe fittings, the sealing ring gets squeezed and fills the gap between the groove and the clamp, thereby forming a reliable sealing surface that prevents the leakage of the medium. As long as the installation is carried out correctly, the quality of the sealing ring meets the standards, and the clamping force of the clamp is sufficient, a satisfactory sealing effect can be attained. Rigid couplings are suitable for pipeline connection environments where the medium pressure is relatively stable and there is no obvious displacement.

- **Flexible couplings**:
On the one hand, flexible couplings make use of the conventional sealing function provided by the rubber sealing ring. On the other hand, their flexible structures enable them to automatically adjust their shape when the pipes experience slight displacements or angular changes due to factors like thermal expansion and contraction or vibration. In this way, they can still maintain an appropriate squeeze on the sealing ring and thus preserve a good sealing state. Consequently, flexible couplings exhibit better adaptability to sealing in working conditions where the pipes are subject to certain dynamic changes.

### Applicable Pipeline Working Conditions
- **Rigid couplings**:
Rigid couplings are more appropriately applied in pipeline systems that are relatively fixed, without significant displacement or vibration, and where the medium pressure remains relatively stable. For example, in general indoor fire-fighting water supply pipelines and ordinary industrial water delivery pipelines, these pipelines usually do not undergo large position changes or angular variations during normal operation.

- **Flexible couplings**:
Flexible couplings are frequently utilized in situations where the pipelines have specific flexibility requirements. For instance, in the case of buried pipelines, variations in the soil environment and ground loads may lead to pipeline displacement. Additionally, in some pipeline systems affected by vibration sources, such as water supply and drainage pipelines near large mechanical equipment or pipeline systems with vibration generated by water pumps running, flexible couplings can better adapt to these changes in working conditions and effectively avoid issues like sealing failure and connection loosening caused by pipeline displacement or vibration.

### Installation Requirements
- **Rigid couplings**:
During the installation process of rigid couplings, the key point is to ensure that the size of the clamp precisely matches the grooves of the pipes and pipe fittings. The bolts should be tightened symmetrically and evenly to enable the clamp to exert uniform pressure on the sealing ring and reach the specified clamping force. The installation procedure for rigid couplings is relatively standardized and normalized, and the requirement for the operation space is not overly demanding. As long as the necessary tools can be used to tighten the bolts properly, the installation can be completed smoothly.

- **Flexible couplings**:
When installing flexible couplings, in addition to fulfilling the basic installation requirements like tightening bolts, special attention must be paid to the correct installation and initial state adjustment of their flexible structures. For example, for those flexible couplings with hinge structures, it is essential to ensure that the hinges can move freely. For those equipped with elastic elements, it is necessary to check whether their elasticity is normal. After the installation is finished, it is also important to verify whether the flexible couplings can flexibly adapt to the slight changes of the pipes. The installation of flexible couplings demands a relatively higher level of operational precision from the installers, and the installation space is preferably designed to be convenient for observing and adjusting the state of the flexible structure.

### Cost Differences
- **Rigid couplings**:
Due to their relatively simple structure and fewer components, the manufacturing cost of rigid couplings is usually lower. In some projects where the requirements for pipeline connection are not particularly complicated and the working conditions are relatively stable, rigid couplings are often preferred from a cost perspective. They can help reduce material costs while still fulfilling the basic usage requirements.

- **Flexible couplings**:
Because of their special flexible structures, the design and manufacturing processes of flexible couplings are relatively complex, and they may involve more components. As a result, the production cost of flexible couplings is generally higher than that of rigid couplings. Nevertheless, in cases where it is necessary to handle complex working conditions, ensure the long-term stable operation of the pipelines, and meet high requirements for sealing and adaptability, although the initial cost of flexible couplings is high, their cost performance is still worthy of consideration when taking into account the long-term use and maintenance aspects.

### Conclusion
In summary, both rigid and flexible grooved couplings have their own unique features and are applicable in different pipeline scenarios. Understanding their differences in various aspects helps in making appropriate choices during pipeline installation and maintenance to ensure the efficient and reliable operation of the pipeline systems.
